DM7 Digital Mixing Console

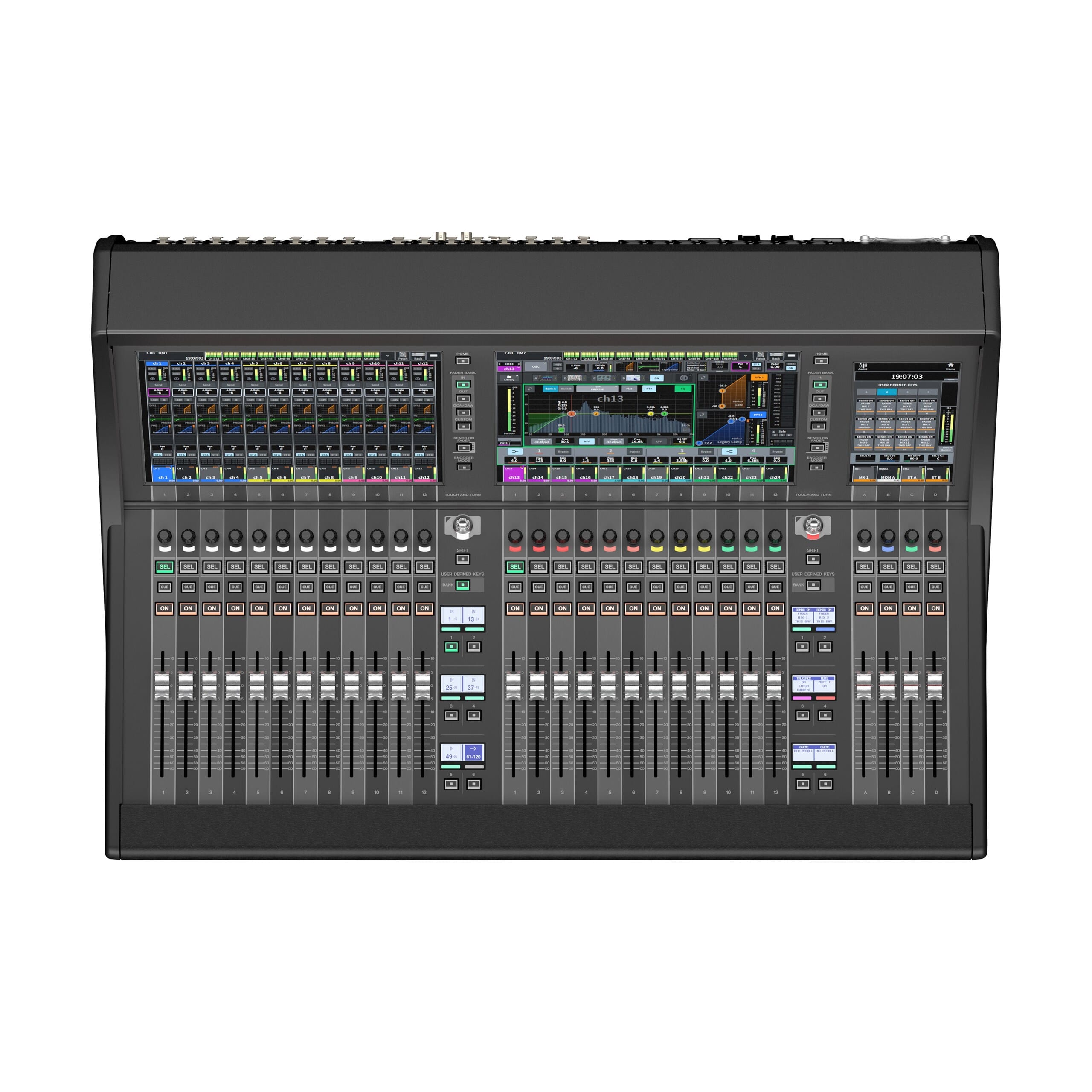

The DM7 is a Dante-equipped versatile digital mixing console with unparalleled sound quality, ease of operation, and high reliability that make it perfect for a wide range of applications. The DM7 is configured with 24 + 4 faders and a 2 x 12” + 1 x 7” multi-touch screen.
Input mixing channels: 120 mono
Buses: 48 Mix + 12 Matrix + 2 Stereo
Display: 12.1" multi-touch screen x 2, 7" multi-touch screen x 1
Faders: 28 (12 + 12 + 4)

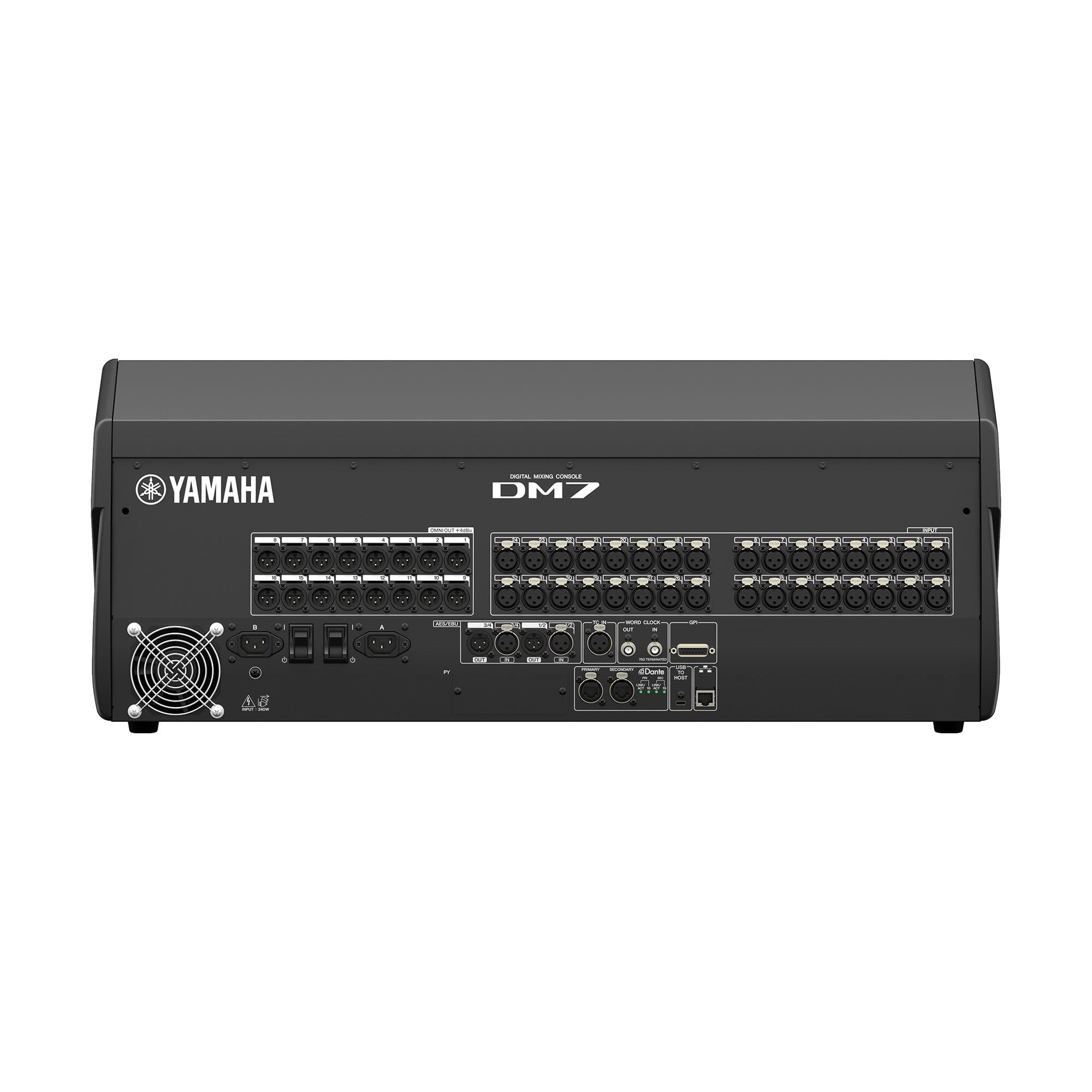

Analog I/O: 32 inputs / 16 outputs
Dante: 144 in / 144 out
AES/EBU: 2 in / 2 out (with SRC)
Slot: PY Slot x 1
USB Audio Interface: 18 in / 18 out
Power supply: Redundant power supply built-in
Power consumption: 240 W
Dimensions (W x H x D): 793 mm x 324 mm x 564 mm (31.3" x 12.8" x 22.2")
Net Weight: 23.5 kg (51.8 lb)
