Each mic pre has the option of mic, line or the front-panel instrument input, with variable input impedance to ensure you are getting the best performance from the source. Up to 60dB of gain is available on the four-position rotary and gain range switches, with a further +20dB of continuously variable trim, meaning a huge 80dB of gain is available should it be required. The high-pass filter features variable cut-off frequency between 16 and 420Hz. An array of 6-segment LED meters show peak signal level for the four mic pres, in addition to the four direct inputs to the optional A-D card. Switchable rear-panel insert points allow the use of inline processors such as compression.
Feature
Classic ISA mic preamp design featuring Lundahl LL1538 input transformer
Instrument and line inputs with dedicated input connectors and front-panel switch
Switchable input impedance including classic ISA 110 setting
Variable cut-off frequency high-pass filter

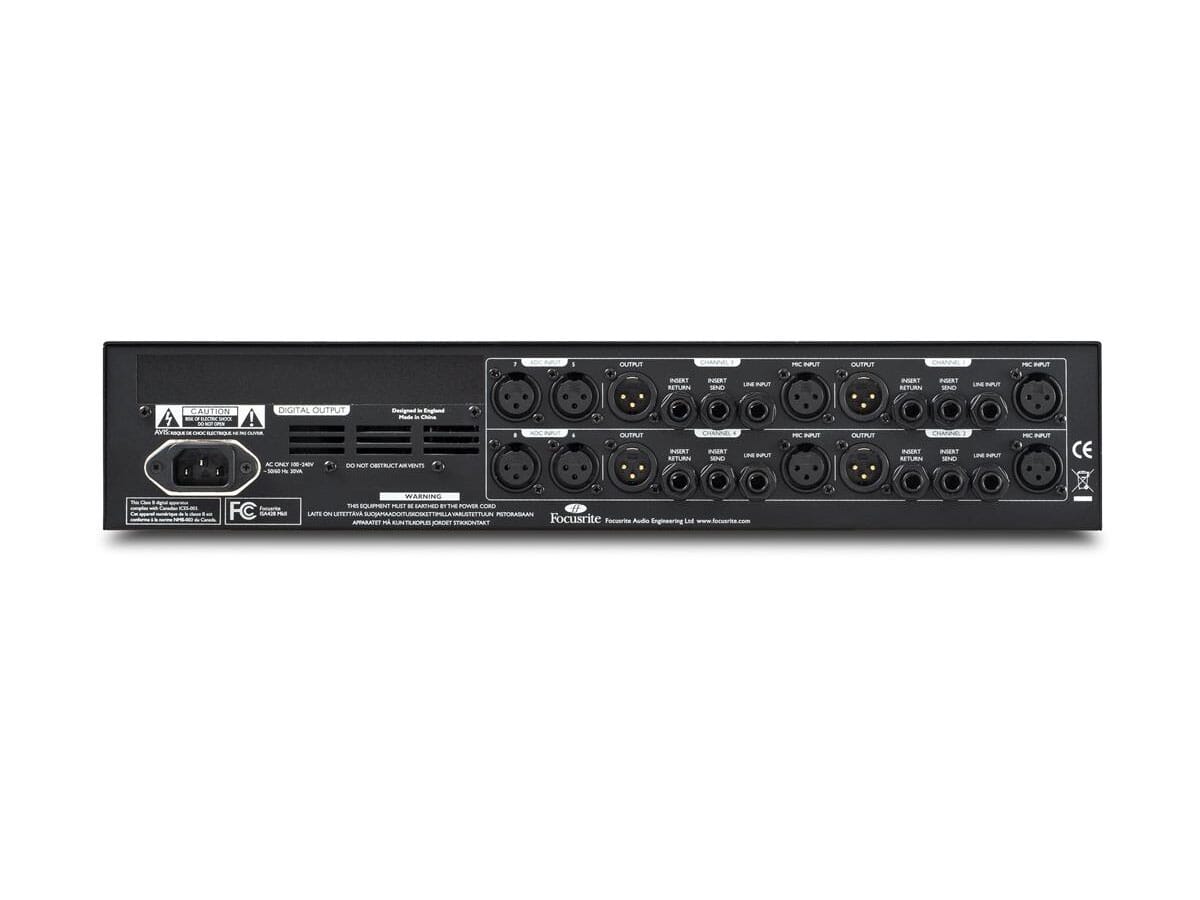

Dedicated switchable insert point

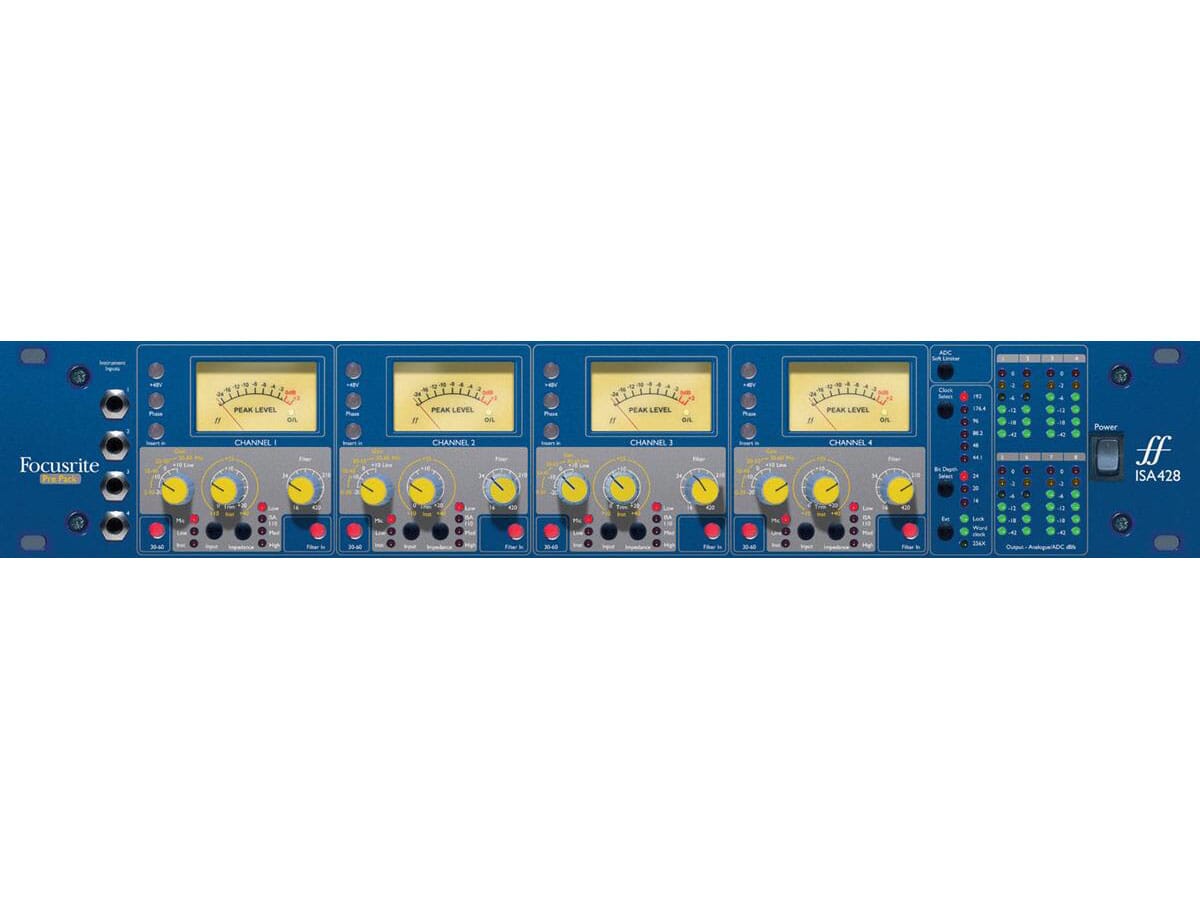

Per-channel six-segment LED peak-level meters
Optional A-D card with up to 192kHz, 24-bit sampling via ADAT or AES3
Brainworx bx_console Focusrite – exclusive plug-in that faithfully captures the sound, feel and styling of the original Focusrite ISA 110 Equaliser and ISA 130 Dynamics Modules.
