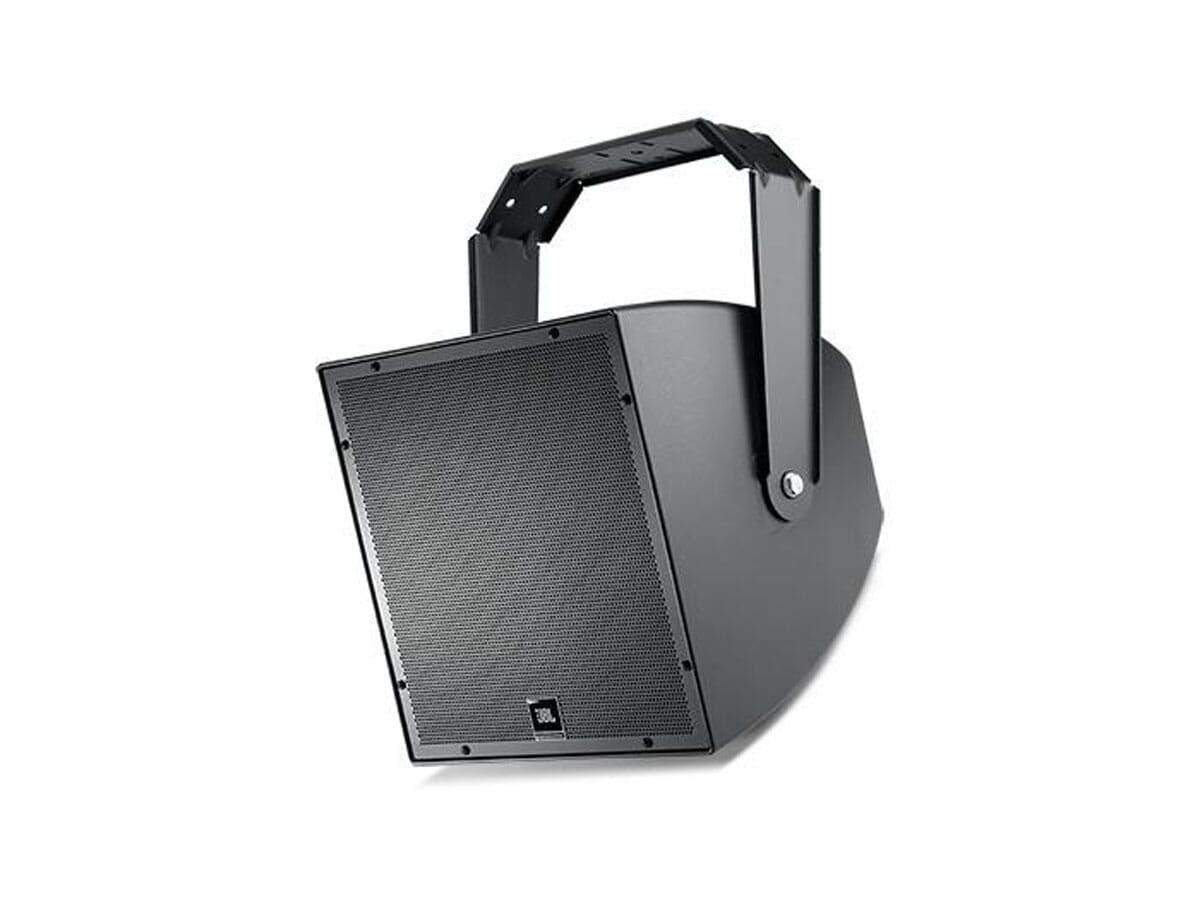

The AWC159 is comprised of a high-power coaxial 380 mm (15 in) low frequency driver and 38 mm (1.5 in) high frequency compression driver. The co-axial design utilizes a unique tapered polepiece design and transitions to the cone of the low frequency driver as a large diameter pattern control horn for the high frequencies, both eliminating high-frequency beaming which is common among this category of speaker and extending pattern control to the lowest possible frequencies.
Features
Highly weather-resistant IP56 rating
Consistent 90° x 90° broadband pattern control
Components:
• 380 mm (15 in) woofer with Kevlar-reinforced cone and 75 mm (3 in) voice coil.
• 38 mm (1.5 in) diaphragm compression driver with patented design and high temperature polymer diaphragm.
Extraordinary clarity for speech, with extended frequency response for music.
Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
500 Watt power handling (average continuous pink noise) with high sensitivity provides high SPL capability.
High-power passive crossover network.
52 Hz – 20 kHz frequency response.
300 Watt 70V/100V multi-tap (built-in transformer) or direct 8O low-impedance
