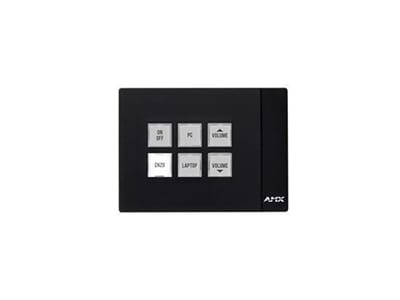

The MCP-106 / 6-Button Massio™ ControlPad is a high performance ControlPad that combines AMX control and a stylish keypad into a single unit that can be mounted in a standard 1 gang US, UK or EU back box to provide dedicated room control. Massio ControlPads provide high performance, intuitive usability and modern styling, and are simple to configure using AMX's Rapid Project Maker or custom programmed using NetLinx Studio software.
The MCP-106 shares its controller technology with AMX's flagship NX-series, enabling it to provide the latest networking and security features, along with outstanding processing power.
Features
Cryptographic Support – In accordance with FIPS 140-2, a U.S. government computer security standard used to accredit cryptographic modules for the protection of sensitive or valuable data
IPv6 – Supports Internet Protocol version 6 (IPv6), the communications protocol that provides an identification and location system for computers on networks and routes traffic across the Internet
IEEE 802.1X – Supports IEEE Standard for Port-based Network Access Control with the ability to grant or deny network access to devices wishing to attach to a LAN based on credentials tied to the device rather than to a user
X.509 Certificate Services – NX supports customer-provided certificates for access to protected networks
TLS / SSH Client – Provides NetLinx programmers the ability to manage secure port TLS and SSH communications with a remote device or server
Network Syslog – The Central Controller generates an audit record of events using syslog, a standard for message logging
Unrivaled Network Security – With IPv6 and wired 802.1X for protected network access and user-defined LDAP login group support, Massio ControlPads provide rock-solid security
All-in-one Keypad/Controller – Unique product combines an elegant yet rugged user interface with an onboard controller
Includes AMX Control – Incorporates AMX's flagship NX-series control technology, including the latest networking and security features and outstanding processing power
One Tool to Program - RPM – Radically reduces total cost of ownership by reducing the time and cost required to configure or program a system from days to less than an hour
Simple Integration with RMS – Using RPM, easily integrate RMS with the MCP-106 to provide a platform for real-time performance monitoring and maintenance
Elegant Industrial Design – Complement the rest of the AMX user interface product family and look great in any room
Large Buttons / Larger More Descriptive Text – All buttons are easy to read with large supplied labels, or easily make your own for a customized solution
Display Monitoring – Use the ControlPad with RMS to monitor power status, input status, lamp hours and filter hours
Web-based Control – Remotely login to ControlPads and execute button presses
Inactivity Timer – Turn off equipment after lack of activity (timeouts) to save energy
Built In Control Ports – Serial and IR ports available to communicate and control common presentation equipment
Backlit Buttons – Can flash or turn on/off when pressed
Execute Multiple Functions at Once – Macros can be written to trigger multiple functions through a single button press
Works with AMX IR Files – Leverage thousands of pre-existing AMX IR files on AMX.com
Standard Enclosures – Standard back box mounting options for US, UK and EU
Native Direct Connection to RMS – No proxy required
