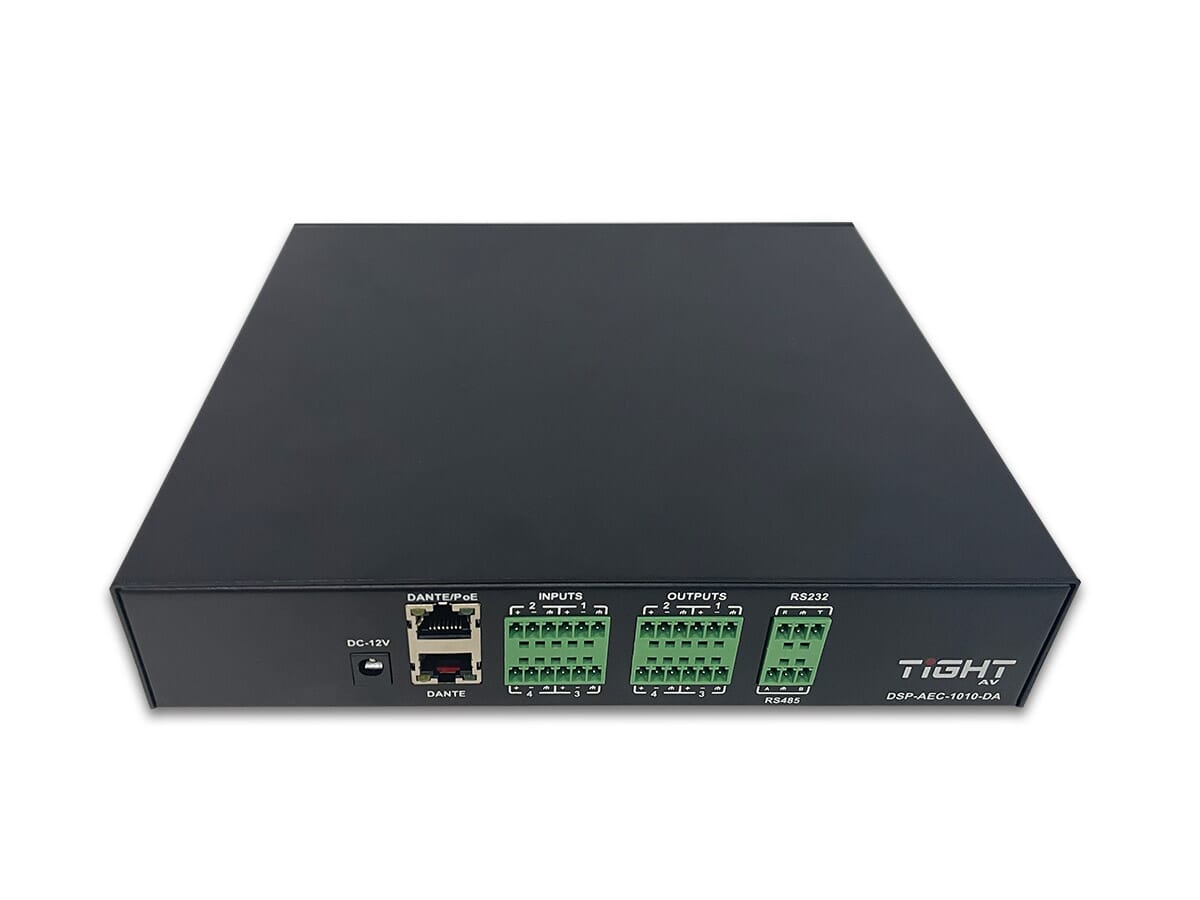

The DSP-AEC-1010-DA is an audio signal processing unit with analog and Dante interface,
as well as a USB for computer audio. The unit is configured and controlled from a
Windows application that presents an easy to use GUI.

Powerful processing with eq, dynamics, mixing and matrix combined with advanced acoustic
echo cancellation (AEC) makes this unit suitable for a wide range of use cases.
A single network cable connected to a PoE network switch allows for both power, control and Dante audio.

Analog audio inputs supports both microphone and line level sources. Phantom power is selectable
individually for each channel. USB connection to host computer works as a sound card for easy
computer audio connectivity for both playback and recording.

KEY FEATURES
• 4 analog inputs and outputs
• 4 Dante inputs and outputs
• USB for computer audio playback and recording
• Powerful DSP processing with matrix and mixer
• Advanced AEC (Acoustic Echo Cancellation)
• External control from custom software or 3rd party control systems

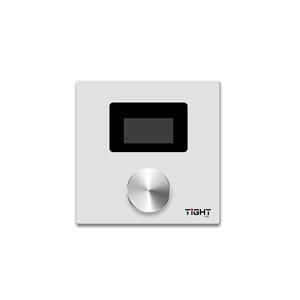

• External control from configurable PoE wall panel
• Open API for external control via ethernet or RS-232/485
