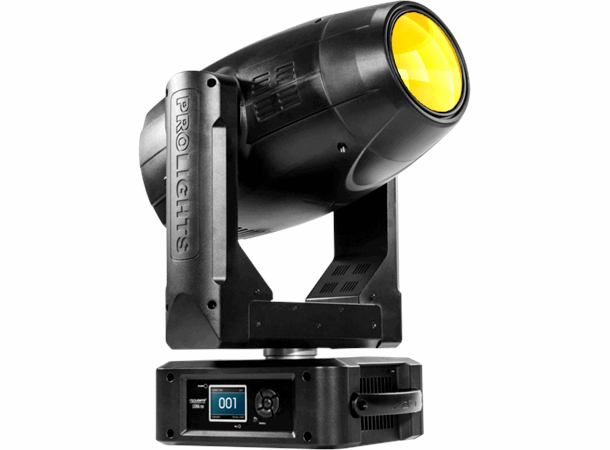

Luma 700 is a 270 W 7.000 K LED spot luminaire designed to replace the 700 W discharge fixture used in theatres, concerts, events and broadcast. The custom optical system delivers a consistent output with a flat-field and crisp gobo projection right through the massive 5° to 50° zoom range.
Features:
Full CMY colour mixing system with separate linear CTO, plus colour wheel
Rotating and static gobo wheels, plus prism, iris and linear frost
HD dimming
LIGHT SOURCE
Source: 270W high-power white LED
CCT: 7.000K
Lux: (5°) 19'950lx @5 m
Lux: (50°) 1'008lx @5 m full
Source life expectancy: > 50.000 h
OPTICS

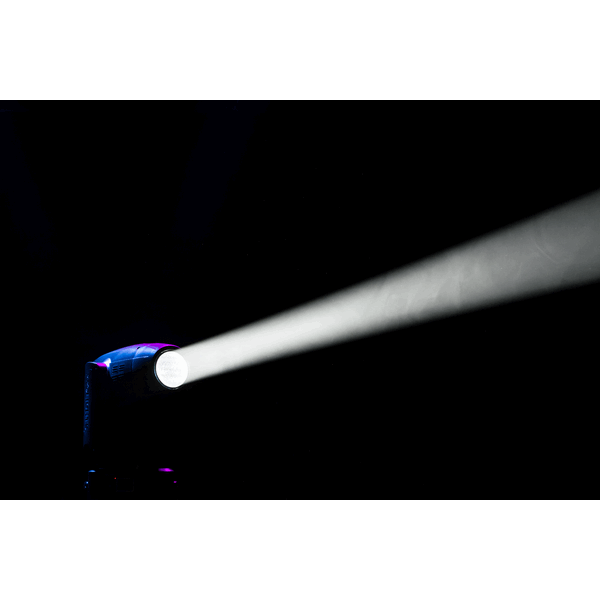

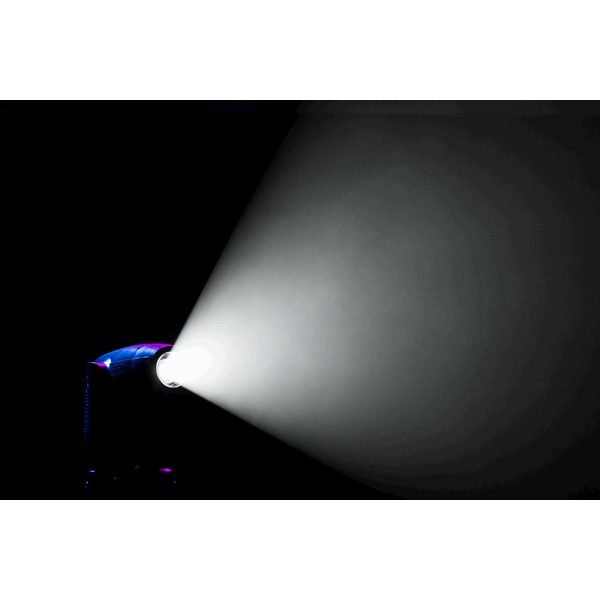

Zoom: 5° - 50° motorised linear zoom
Lens diameter: 120mm
Lens type: HD anti-reflection lenses with achromatic coating
Focus: motorised with auto-focus
COLOUR SYSTEM
Colour mixing: linear CMY
CTC: linear CTO correction 2.700 K ~ 6.000 K
Colour wheel: 8 colour filters
DYNAMIC EFFECTS
Rotating gobos: 7 rotating gobos + open, interchangeable, indexing
Gobo size: outer: 26,5 mm - image: 20 mm - thickness: 1,1 mm
Fixed gobos: 6 fixed gobos + open, interchangeable
Gobo size: outer: 26,8 mm - image: 20 mm - thickness: 1,1 mm
Circular prism: 3f with bi-directional rotation, indexing
Frost: linear 0 - 100% frost filter
Iris: 5 - 100% motorised iris
BODY
Pan angle: 630° - 540°
Tilt angle: 267°
Pan/Tilt resolution: bit 8 / 16 bit
Feedback: automatic repositioning after accidental movement
Body: aluminium structure with hi-resistance polycarbonate cover
Body colour: black
CONTROL
Protocols: DMX512, RDM, W-DMX
DMX channels: 19 / 21 / 28 / 29channel
W-DMX: included, wireless solution receiver
RDM: RDM ready for fixture remote monitor and settings
Display: LCD high resolution colour display
Firmware upgrade: yes, via USB - DMX interface (UPBOX2) not included
Hibernation: power safe mode when lost DMX
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Strobe / shutter: 1 - 28 Hz, electronic
Battery backup: battery backup for user operation without connecting to the main power
Operating temperature: -10° ~ +45°
ELECTRICAL
Power supply: 100-240 V – 50/60 Hz
Power consumption (at 230 V): 400W
Power consumption (at 120 V): 400W
PHYSICAL
Cooling: combination of heat pipe cooling system and low noise fan
Sospension and fixing: any position with quick-lock omega brackets
Pan / tilt lock: pan / tilt locking for transportation and maintenance

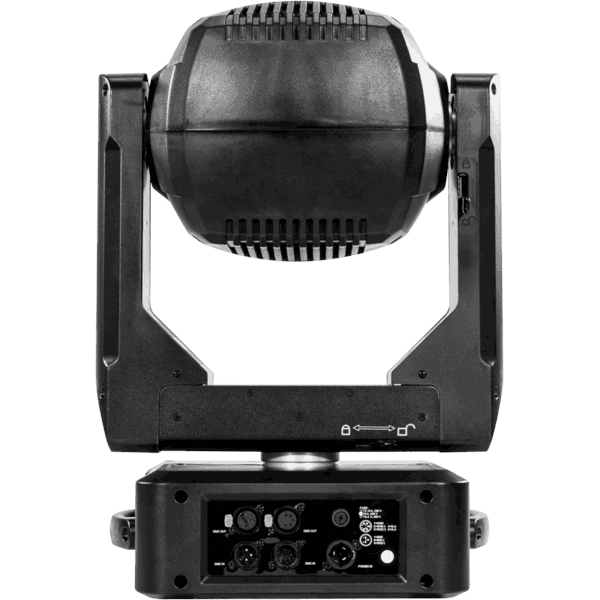

Signal connection: Amphenol XLR 3p + 5p IN/OUT connectors
Power connection: Neutrik powerCON TRUE1 IN connector
IP rating: 20

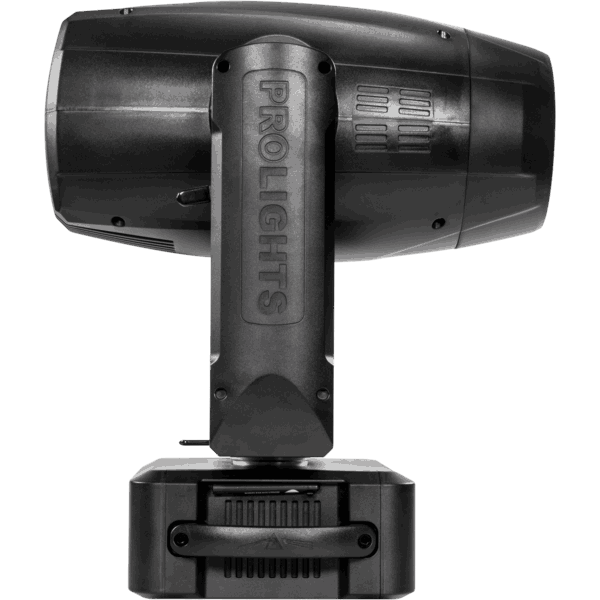

Dimensions (WxHxD): 355x663x235mm
Weight: 23kg
