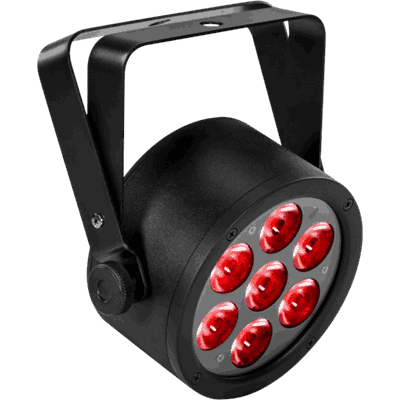

LUMIPAR7UTRI is a super-slim PAR LED designed to be a multi-use wash light for events and club installations. Equipped with 7x3 W high-efficiency RGB / FC LED light source, conceived to create bright, intense and saturated colours. LUMIPAR7UTRI is compatible with the infrared remote controller for intuitive and interactive use without the need of any external DMX units. LUMIPAR7UTRI can be also controlled wireless through the optional USB WIFI transceiver in combination with WIFIBOX and the SmartColor app.
Features:
7x3 W RGB / FC high-power LED
Superior optical design to ensure advanced chromatic synthesis
Flicker-free operations
USB port for USB WIFI transceiver (optional)
Silent operation and HD dimming system
LIGHT SOURCE
Source: 7x3W RGB LEDs
Luminous flux: 681lm
Lux: 641lx @3 m full
Source life expectancy: > 50.000 h
OPTICS
Beam angle: 16°
Field angle: 33°
Lens diameter: 34,5mm
COLOUR SYSTEM
Colour mixing: RGB / FC
White presets: 3.200 K ~ 10.000K
Colour wheel: virtual colour wheel with presets
Macros: built-in white presets
DYNAMIC EFFECTS
Static colour mode: selection of static colour
Manual colour mode: manual adjustment of colour
Auto mode: built-in programs with execution speed adjustment
Sound mode: music activation through internal microphone and sensitivity control
BODY
Body: sturdy die-cast aluminium body conceived for long-time durability
Body colour: black
CONTROL
Protocols: DMX512
DMX channels: 3 / 7channel
W-DMX: optional, proprietary protocol compatible with WIFIBOX, WDBOX
Display: LED display user interface
IR: infrared sensor controlled by remote
Master/Slave: for synchronized operation of more units linked in a chain
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Strobe / shutter: 1 - 28 Hz, electronic
Operating temperature: -10° ~ +45°
Flicker: flicker free operation
ELECTRICAL
Power supply: 100-240 V – 50/60 Hz
Power consumption (at 230 V): 20W
Power consumption (at 120 V): 20W
Output (at 230 V): 57 units on a single power line
Output (at 120 V): 30 units on a single power line
PHYSICAL
Sospension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
Data: USB port for USB WIFI transmitter (optional)
Signal connection: XLR 3p IN/OUT connectors
Power connection: IEC IN/OUT connectors
IP rating: 20
Dimensions (WxHxD): 183x141x179mm
Weight: 1,2kg
