SMARTBATPLUS is the more-advanced member of the successfull SMARTBAT range offering more
advanced features such as WDMX wirelss card, waterproof housing, increased brightness,
high definition optics and fast-charge magnetic connector. It's packed in a super-slim
compact housing with mirror finishing useful when hiding fixtures from view.
The pack includes:
6 pcs SMARTBATPLUS

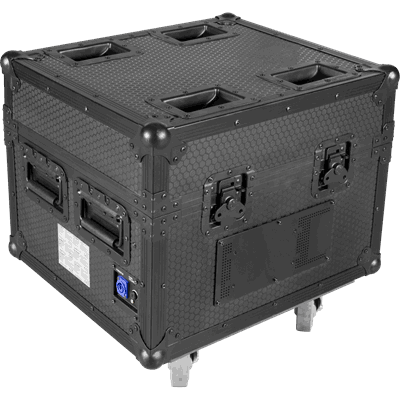

1 FLIGHT CASE with integrated battery charger kit
1 IR controller
1 PowerCON power cable
Features:
4x12W RGBW/FullColor high-power LED delivers 1.162lm
Long lasting battery capacity: 12h colour changing / 8h FULL
Mirror finish to hide the luminaire to audience
Protection: IP65/IP54, for temporary outdoor use
Built-in antenna transceiver (2,4 Ghz) by Wireless Solution Sweden
Fast charge magnetic connector
Adjustable foot support for tilt regulation (up to 20°)
LIGHT SOURCE
Source: 4x12W RGBW LED
Luminous flux: 1162lm
Lux: 2064lx @3 m
Source life expectancy: > 50.000 h
OPTICS
Beam angle: 11°
Field angle: 19°
COLOUR SYSTEM
Colour mixing: RGBW / FC
White presets: 3200-9000K
Colour wheel: virtual colour wheel with presets
Macros: built-in white presets
DYNAMIC EFFECTS
Static colour mode: selection of static colour
Manual colour mode: manual adjustment of colour
Auto mode: built-in programs with execution speed adjustment
BODY
Tilt angle: 20° adjustable foot support for tilt regulation (up to 20°)
Body: sturdy die-cast aluminium body conceived for long-time durability
Body colour: mirror finishing
CONTROL
Protocols: DMX512, W-DMX
DMX channels: 3 / 4 / 6 / 10channel
W-DMX: included, wireless solution receiver
Display: black OLED touch display
Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
IR: infrared sensor controlled by remote
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 different dimming curves available
Strobe / shutter: 1-25 Hz, electronic
Operating temperature: 0° ~ +35°
Flicker: flicker free operation
ELECTRICAL
Power supply: 100-240 V – 50/60 Hz
Power consumption (at 230 V): 323W
Power consumption (at 120 V): 330W
BATTERY
Battery: 16,8V lithium
Estimated battery life in colour change mode up to: 12h
Estimated battery life in full-mode up to: 8h
Re-charge connection: magnetic fast-charge in case
Re-charge time: 4h/max
Battery status: shown on display
PHYSICAL
Cooling: passive cooling and fan-free
Sospension and fixing: M12 threaded insert for easy clamp installation
IP rating: IP65 (front) - IP54 (bottom)
Dimensions (WxHxD): 537x540x470mm
Weight: 43kg
