All you need for a powerful drum performance in a heavy duty case for optimal protection.

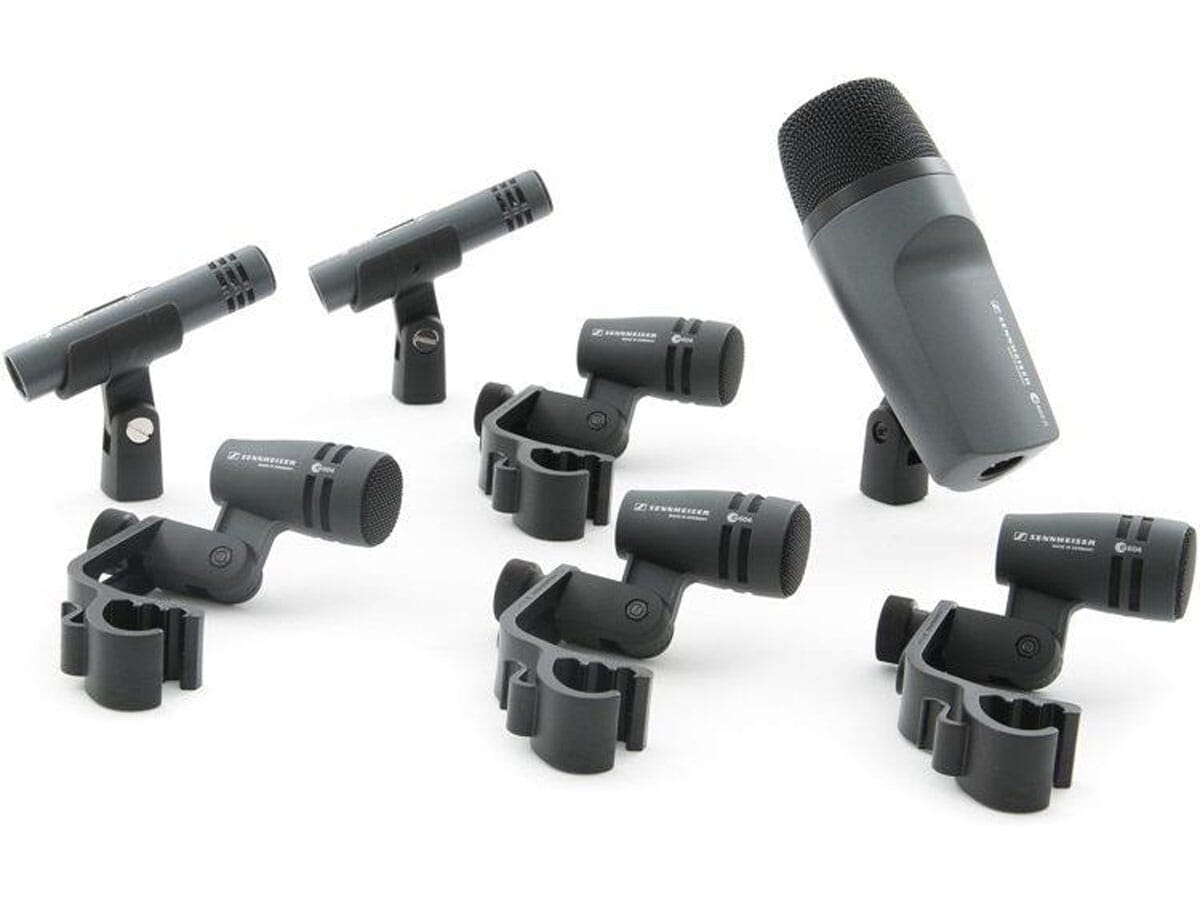

Includes 1x e 602-II, cardioid instrument microphone for bass drums, 4x e 604,
cardioid microphone for snare and tom-tom, and 2x e 614, super-cardioid, permanently
polarized condenser microphone for cymbal and overhead.
e 614: for demanding instrument recordings, and performances that produce extended
frequencies, high SPL handling and transient response. For woodwind, strings, and home recording
e 604: for toms, snares, and percussion, clips-on quickly and easily wherever you choose.
Tough, reinforced housing, and clamp
602-II: for bass drums, bass guitar cabs and tubas. Solid, lightweight, and easy to position.
For studios, clubs, rehearsal rooms, smaller gigs, or for home recording.
Hva er med i esken
1x e 602-II, cardioid instrument microphone for bass drums
4x e 604, cardioid microphone for snare and tom-tom
2x e 614, super-cardioid, permanently polarized condenser microphone for cymbal and overhead
Dimensions Ø 20mm, L = 100mm
Ø 60 x 153 mm
Ø 33 x 59 mm
Connector XLR-3
Frequency response (Microphone) 40 - 18000 Hz
Transducer principle (Microphone) dynamic
Frequency response 40 - 20000 Hz
20 - 16000 Hz
Max. sound pressure level 139 dB/SPL
Transducer principle pre-polarised condenser microphone
Weight 93 g
318 g
60 g
Pick-up pattern super-cardioid
cardioid
cardioid
Sensitivity in free field, no load (1kHz) 3 mV/Pa = - 50dB (0 dB = 1 V/Pa)
0,25 mV/Pa; (50 Hz) 0,9 mV/Pa
1,8 mV/Pa
Nominal impedance 50 O
350 O
350 O
Min. terminating impedance 1000 O
Phantom powering 12 – 52 V / 3 mA
Equivalent noise level 24 dB(A)
Equivalent noise level weighted as per CCIR 468-3 35 dB
Weight w/o cable 60 g
