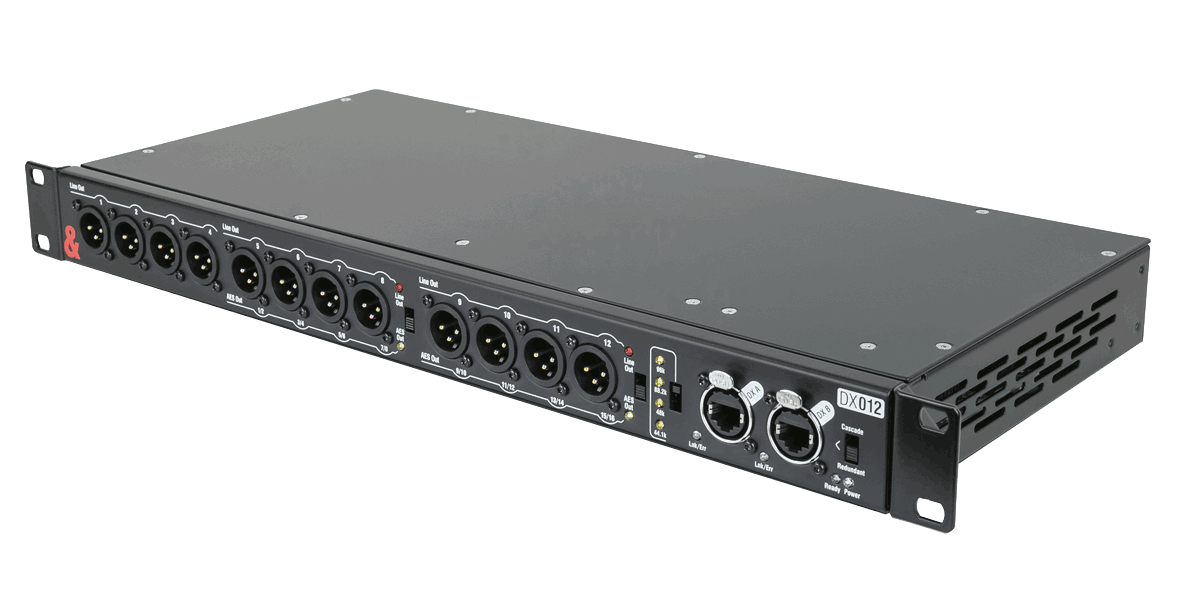

12 XLR Output Analogue/AES Portable DX Expander

Need to get more out of your system? DX012 provides remote output expansion for SQ, Avantis and dLive mixers,
and for the AHM-64 audio matrix processor.

Perfect for feeding IEM systems and amplifier racks, DX012 offers both analogue and AES digital output
options in a compact 1U form factor.

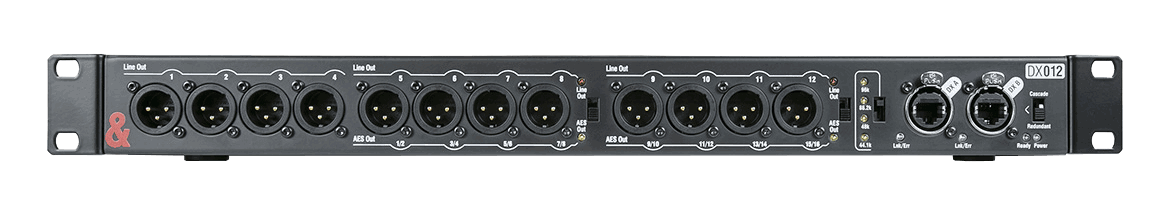

Each DX012 provides 12 XLR outputs, configurable as:

    12 analogue line outputs
    8 analogue line outputs + 4 stereo AES outputs
    4 analogue line outputs + 8 stereo AES outputs

The DX012 connects via a single Cat5e cable to the dLive Surface, dLive MixRack, AHM-64 mattrix processor,
Avantis mixer, SQ mixer or upstream DX expander via a secure EtherCon port.

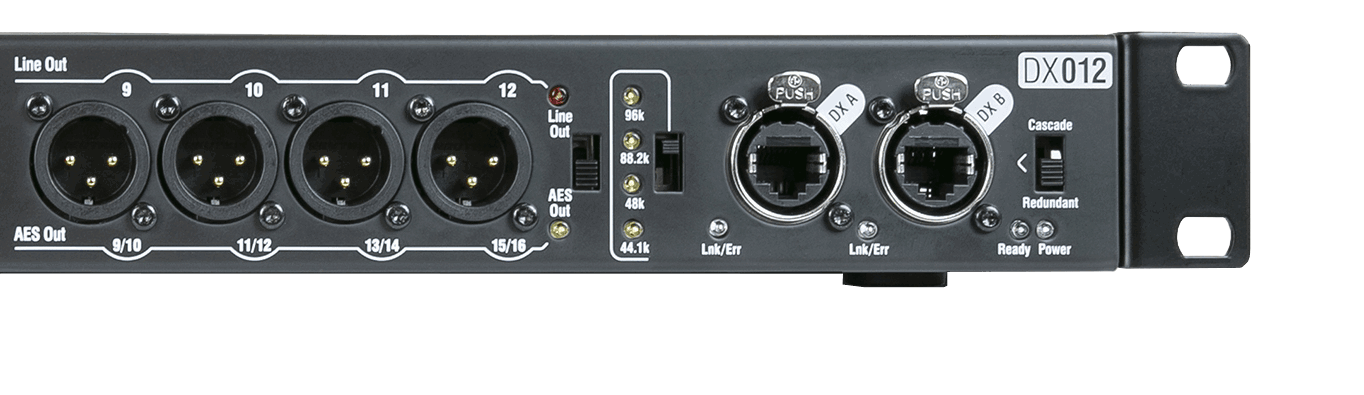

A second locking EtherCon port is provided for redundant connection to compatible hardware, or for daisy-chaining
to a downstream DX expander for additional remote I/O.

Features:

    Compatible with SQ, Avantis and dLive systems
    12 XLR Outputs:
        1-4 Analogue Line Out
        5-8 Analogue Line out or AES Digital out (switchable)
        9-12 Analogue Line out or AES Digital out (switchable)
    AES outputs globally switchable between:
        44.1kHz
        48kHz
        88.2kHz
        96kHz
    Cascade mode allows daisy-chaining of up to 2 DX Expanders on each DX port
    Redundant DX connection to compatible hardware
    Multiple DX012 can be added to a system:
        Up to 16 DX012 units can be added to a SQ system
        Up to 16 DX012 units can be added to an Avantis system
        Up to 46 DX012 units can be added to a dLive S Class system
        Up to 22 DX012 units can be added to a dLive C Class system
        Up to 8 DX012 units can be added to an AHM-64 system
    Rack-mounted (1u) or shelf/floor operation
    Plug and Play – no IP addressing required
    Compatible with CAT5e (or higher) cables of up to 100m
    Locking EtherCon ports
