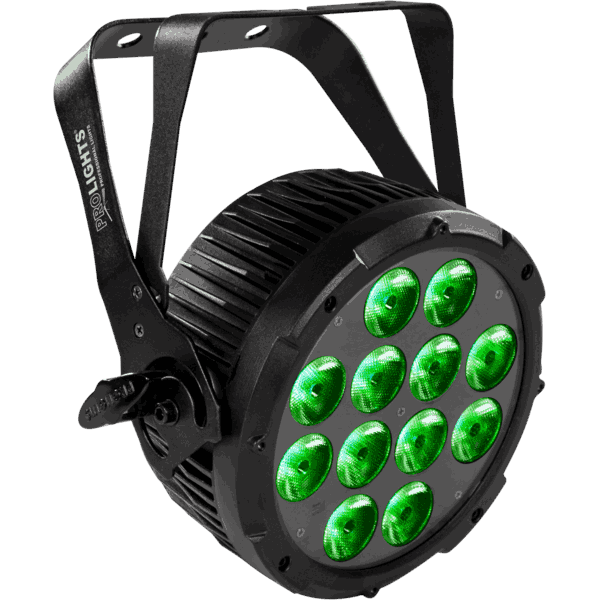

LUMIPAR12UQPRO is a super-slim par LED designed for professional use to be a powerful
wash light and perform an outstanding chromatic capacity through the new optical
design and light source based on 4 colours mixing. LUMIPAR12UQPRO is compatible with
the infrared remote controller for intuitive and interactive use without need any external
DMX units and can be also controlled wireless through the optional USB WIFI transceiver
in combination with WIFIBOX and the SmartColor app.
Features:
12x8 W RGBW / FC high-power LED
Superior optical design to ensure advanced chromatic synthesis
Flicker-free operations
USB port for USB WIFI transceiver (optional)
Silent operation and HD dimming system
LIGHT SOURCE
Source: 12x8W RGBW LEDs
CCT: W: 6.600K
Luminous flux: 3'035,7lm
Lux: 3'113lx @3 m full
Source life expectancy: > 50.000 h
OPTICS
Beam angle: 16°
Field angle: 35°
Lens diameter: 38mm
Additional optics: 25° (inc) - 45° (op)
COLOUR SYSTEM
Colour mixing: RGBW / FC
Colour wheel: virtual colour wheel with presets
DYNAMIC EFFECTS
Static colour mode: selection of static colour
Manual colour mode: manual adjustment of dimmer and strobe
Auto mode: built-in programs with execution speed adjustment
BODY
Body: sturdy die-cast aluminium body conceived for long-time durability
Body colour: black
CONTROL
Protocols: DMX512
DMX channels: 4 / 9channel
W-DMX: optional, proprietary protocol compatible with WIFIBOX, WDBOX
Display: LED display user interface
Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
IR: infrared sensor controlled by remote
Master/Slave: for synchronized operation of more units linked in a chain
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 different dimming curves available
Strobe / shutter: 1 - 28 Hz, electronic
Operating temperature: -10° ~ +45°
Flicker: flicker free operation
ELECTRICAL
Power supply: 100-240 V – 50/60 Hz
Power consumption (at 230 V): 77W
Power consumption (at 120 V): 78W
Output (at 230 V): 17 units on a single power line
Output (at 120 V): 9 units on a single power line
PHYSICAL
Cooling: passive cooling and fan-free
Sospension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
Data: USB port for USB WIFI transmitter (optional)
Signal connection: variants available
Power connection: variants available
IP rating: 44
Dimensions (WxHxD): 253x200x237mm
Weight: 3,3kg
