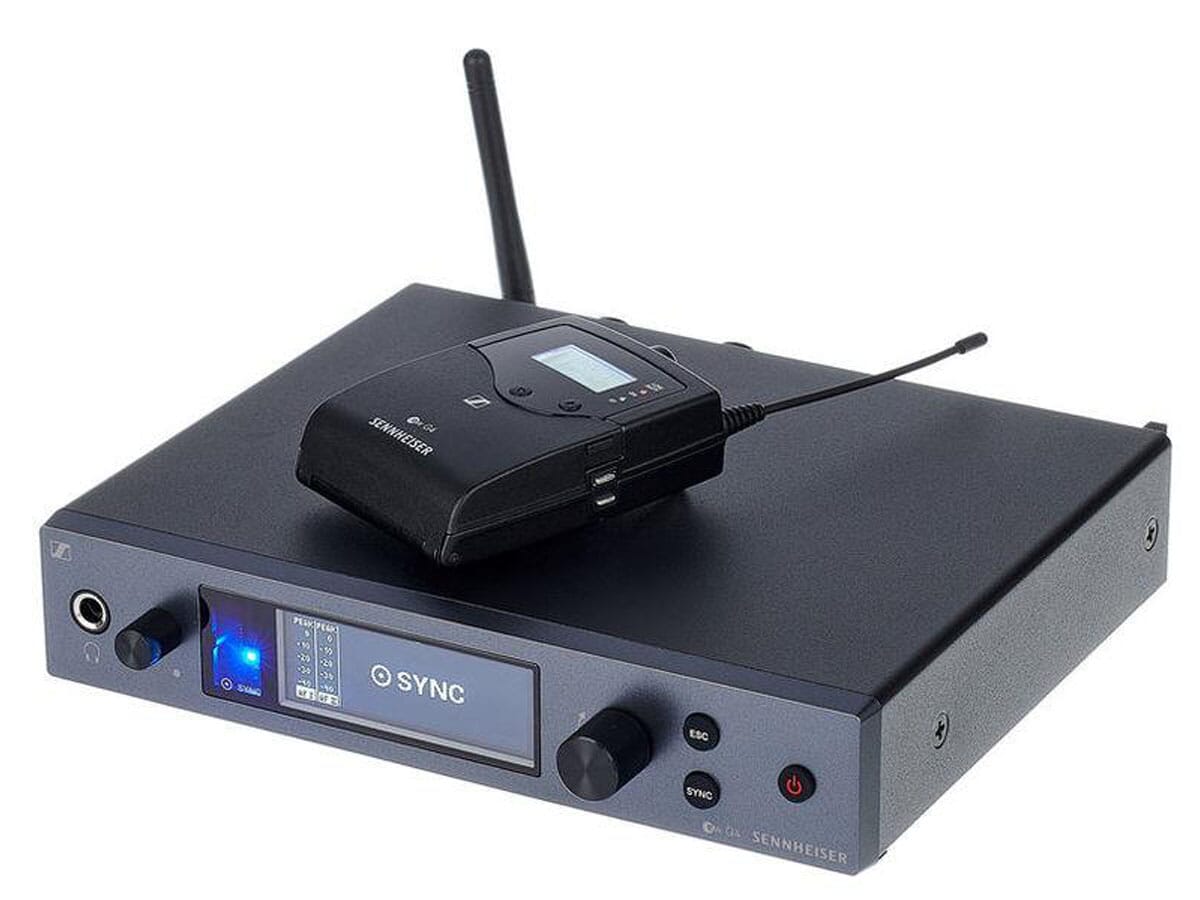

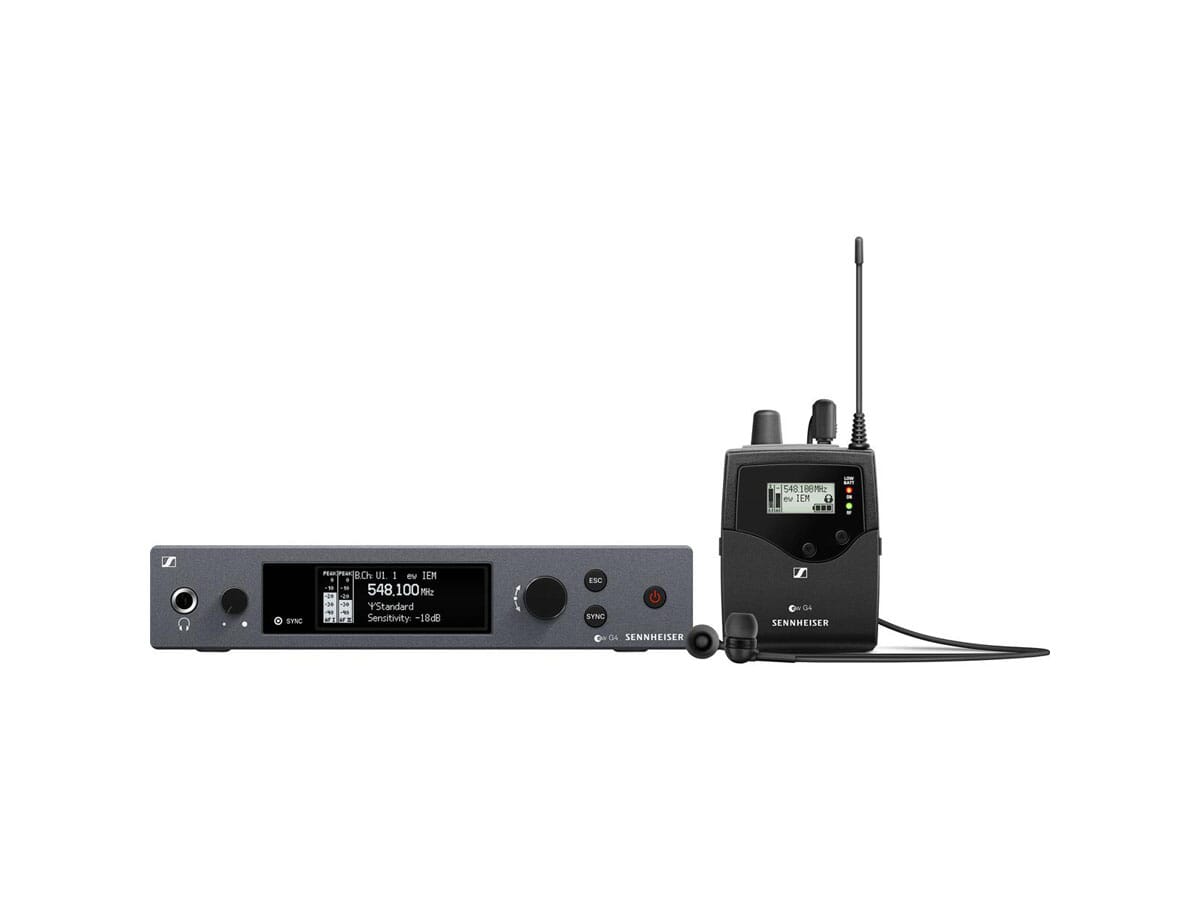

Trådløst in-ear stereo monitorsystem
Wireless monitoring system with PC control
Adaptive diversity technology for high reception quality
Various ear-fitting pads for an individual fit
Built-in 5-band-equalizer.
Sturdy metal housing (transmitter and receiver
42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
Enhanced frequency bank system with up to 16 compatible frequencies
Ethernet port for connecting to the Wireless Systems Manager (WSM) software for
control via computer - this delivers a good overview of monitoring and professional
data management for multi-channel systems
Adaptive diversity for high reception quality
Pilot tone squelch for eliminating RF interference when transmitter is turned off
Automatic frequency scan feature searches for available frequencies
Enhanced AF frequency range
Increased range for audio sensitivity
Wireless synchronization of receiver parameter from transmitter
User-friendly menu operation with more control options
Illuminated graphic display
Auto-Lock function avoids accidental changing of settings
HDX compander for crystal-clear sound
Receiver feature battery indicatation in 4 steps
Mute function for transmitter
Integrated 5-band graphic Equalizerin transmitter
HiBoost, adjustable limiter, stereo/focus mode, balance in receiver
Contacts for recharging BA 2015 accupack directly in the receiver
Wide range of accessories adapts the system to any requirement
Dimensions Approx. 202 x 212 x 43 mm
Approx. 82 x 64 x 24 mm
Compander Sennheiser HDX
THD, total harmonic distortion <0.9 %
= 0.9 %
Weight Approx. 980 g
(incl. batteries) approx. 125 g

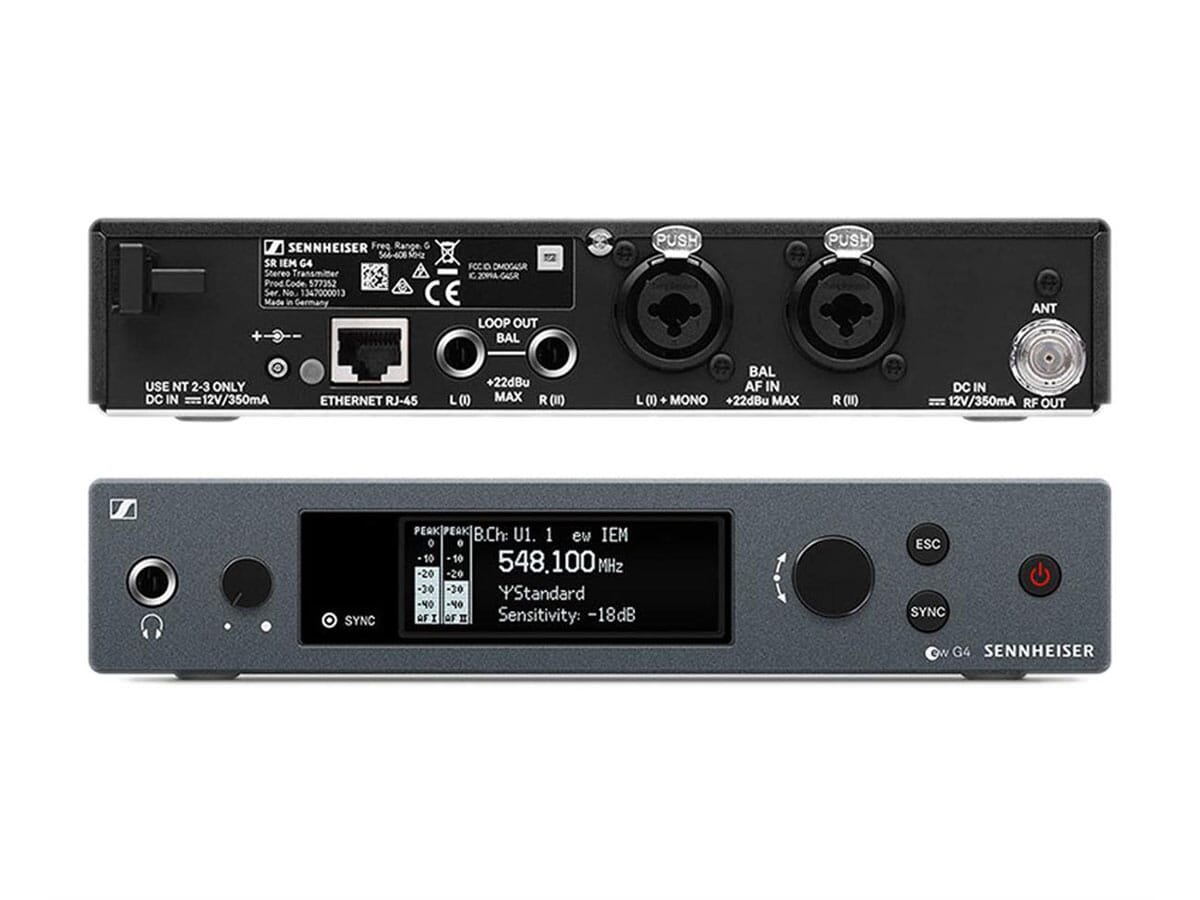

Audio input 2x XLR-3/¼" (6.3 mm) jack combo socket, electronically balanced
Audio output ¼" (6.3 mm) stereo jack socket, balanced
Signal-to-noise ratio >90 dB
approx. 90 dBA
RF output power switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
Switching bandwidth up to 42 MHz
Peak deviation ±48 kHz
Nominal deviation ±24 kHz
Operating time approx. 4 to 6 hours (depending on volume level)
Modulation Wideband FM stereo (MPX pilot tone)
Wideband FM
Power supply 12 V DC
2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption max. 350 mA
at nominal voltage: approx. 140 mA
with transmitter switched off: = 25 µA
Adjacent channel rejection Typically = 65 dB
Audio-Output-Power 2 x 100 mW at 32 ?
Intermodulation attenuation Typically = 70 dB
Limiter –18 dB to –6 dB, adjustable in steps of 6 dB, can be switched off
Max. Input voltage +22 dBu
Powering 3 V battery / 2.4 V rechargeable battery
Receiving frequency Max. 1680 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks,
each with up to 16 factory-preset channels, no intermodulation,
6 frequency banks with up to 16 programmable channels
RF sensitivity < 4 µV, typ. 1.6 µV for 52 dBA rms S/N
Squelch 5 to 25 dBµV, adjustable in steps of 2 dB
Transmission frequency Max. 1680 frequencies, adjustable in 25 kHz steps, 20 frequency banks,
each with up to 16 factory-preset channels, no intermodulation,
6 frequency banks with up to 16 programmable channels
AF frequency response 25 Hz to 15 kHz
Bass Boost +8 dB at 8 kHz
Temperature Range -10 °C to +55 °C
Receiver Principle Adaptive diversity
Frequency stability ±10 ppm
Blocking = 80 dB
Antenna Output BNC socket, 50 O
