Full kontroll over framføringen – overalt, hver dag. G4 in-ear monitorsett gjør konserten din til en ekstraordinær opplevelse – ikke bare for publikum, men også for deg!
Produsert for profesjonell, live lyd: Robust all-in-one trådløst overvåkingsystem for bruk i øret.
Robust bodypack mottaker og pålitelig øreovervåkning IE 4 hodetelefoner som gir klarhet langs hele frekvensspekteret for daglig bruk på scenen
Halv-stativ stereosender i en kapsel av hel-metall med OLED display for full kontroll
Enkel og fleksibel trådløs synkronisering mellom sender og mottaker via infrarød
Kompatibel med Sennheiser WSM kontroll programvare for fleksibel frekvensallokering
Inntil 16 kompatible kanaler
Inntil 42 MHz båndvidde med 1680 valgbare frekvenser, kan tunes helt i et stabilt UHF område
Overføringsområde: Inntil 100 meter / 300 fot
Høy RF utgangeffekt (inntil 50 mW) avhengig av reguleringene i landet

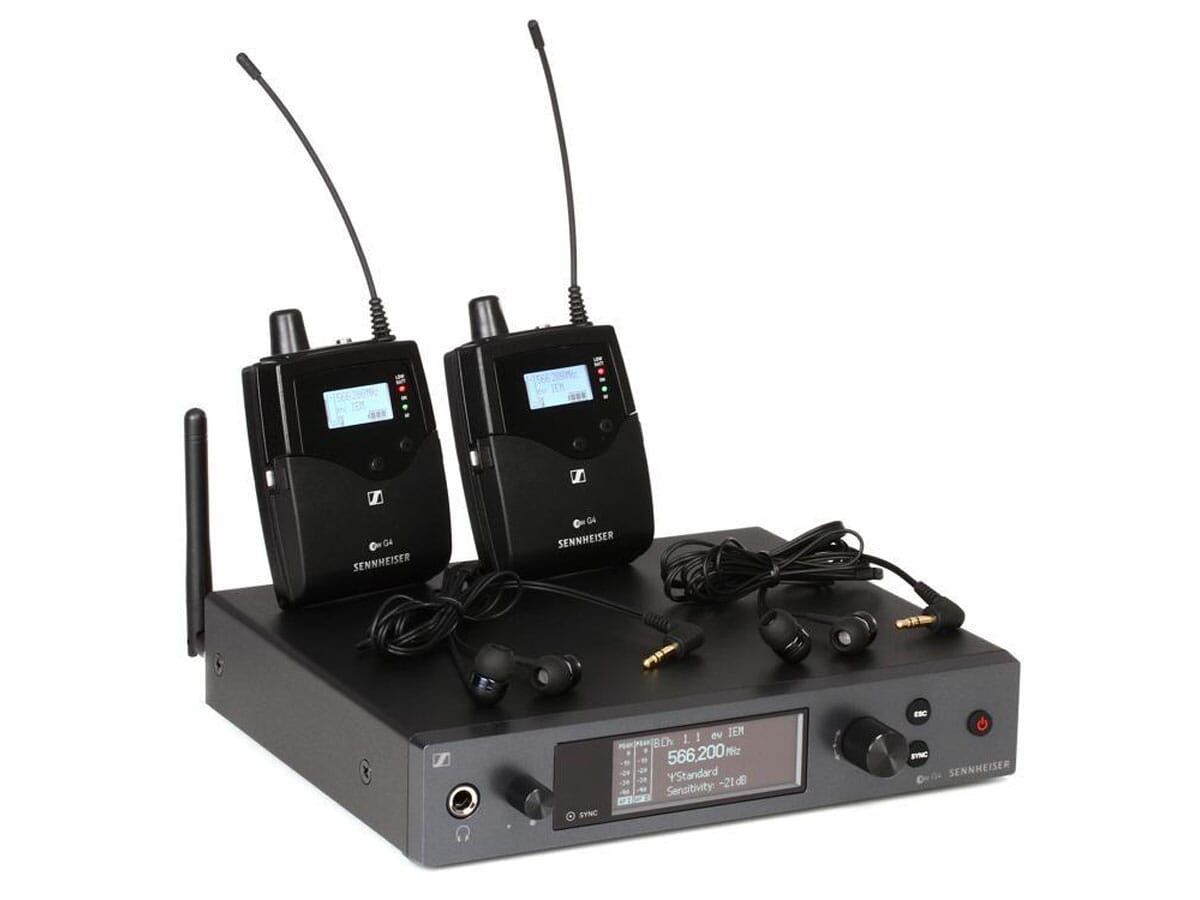

Hva er med i esken
SR IEM G4 stereosender
2 EK IEM G4 stereomottaker
2 IE 4 øretelefoner
4 AA batterier
stangantenne
GA 3 stativmontering sett
hurtigguide
sikkerhetsguide
produsenterklæringsblad
Dimensions Approx. 202 x 212 x 43 mm
Approx. 82 x 64 x 24 mm
Compander Sennheiser HDX
THD, total harmonic distortion <0.9 %
= 0.9 %
Weight Approx. 980 g
(incl. batteries) approx. 125 g
Audio input 2x XLR-3/¼" (6.3 mm) jack combo socket, electronically balanced
Audio output ¼" (6.3 mm) stereo jack socket, balanced
Signal-to-noise ratio >90 dB
approx. 90 dBA
RF output power switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
Switching bandwidth up to 42 MHz
Peak deviation ±48 kHz
Nominal deviation ±24 kHz
Operating time approx. 4 to 6 hours (depending on volume level)
Modulation Wideband FM stereo (MPX pilot tone)
Wideband FM
Power supply 12 V DC
2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption max. 350 mA
at nominal voltage: approx. 140 mA
with transmitter switched off: = 25 µA
Adjacent channel rejection Typically = 65 dB
Audio-Output-Power 2 x 100 mW at 32 ?
Intermodulation attenuation Typically = 70 dB
Limiter –18 dB to –6 dB, adjustable in steps of 6 dB, can be switched off
Max. Input voltage +22 dBu
Powering 3 V battery / 2.4 V rechargeable battery
Receiving frequency Max. 1680 frequencies, adjustable in 25 kHz steps 20 frequency banks,
each with up to 16 factory-preset channels, no intermodulation
6 frequency banks with up to 16 programmable channels
RF sensitivity < 4 µV, typ. 1.6 µV for 52 dBA rms S/N
Squelch 5 to 25 dBµV, adjustable in steps of 2 dB
Transmission frequency Max. 1680 frequencies, adjustable in 25 kHz steps, 20 frequency banks,
each with up to 16 factory-preset channels, no intermodulation,
6 frequency banks with up to 16 programmable channels
AF frequency response 25 Hz to 15 kHz
Bass Boost +8 dB at 8 kHz
Temperature Range -10 °C to +55 °C
Receiver Principle Adaptive diversity
Frequency stability ±10 ppm
Blocking = 80 dB
Antenna Output BNC socket, 50 O
