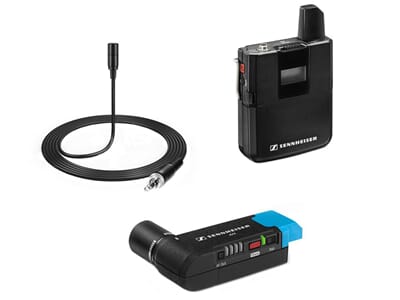

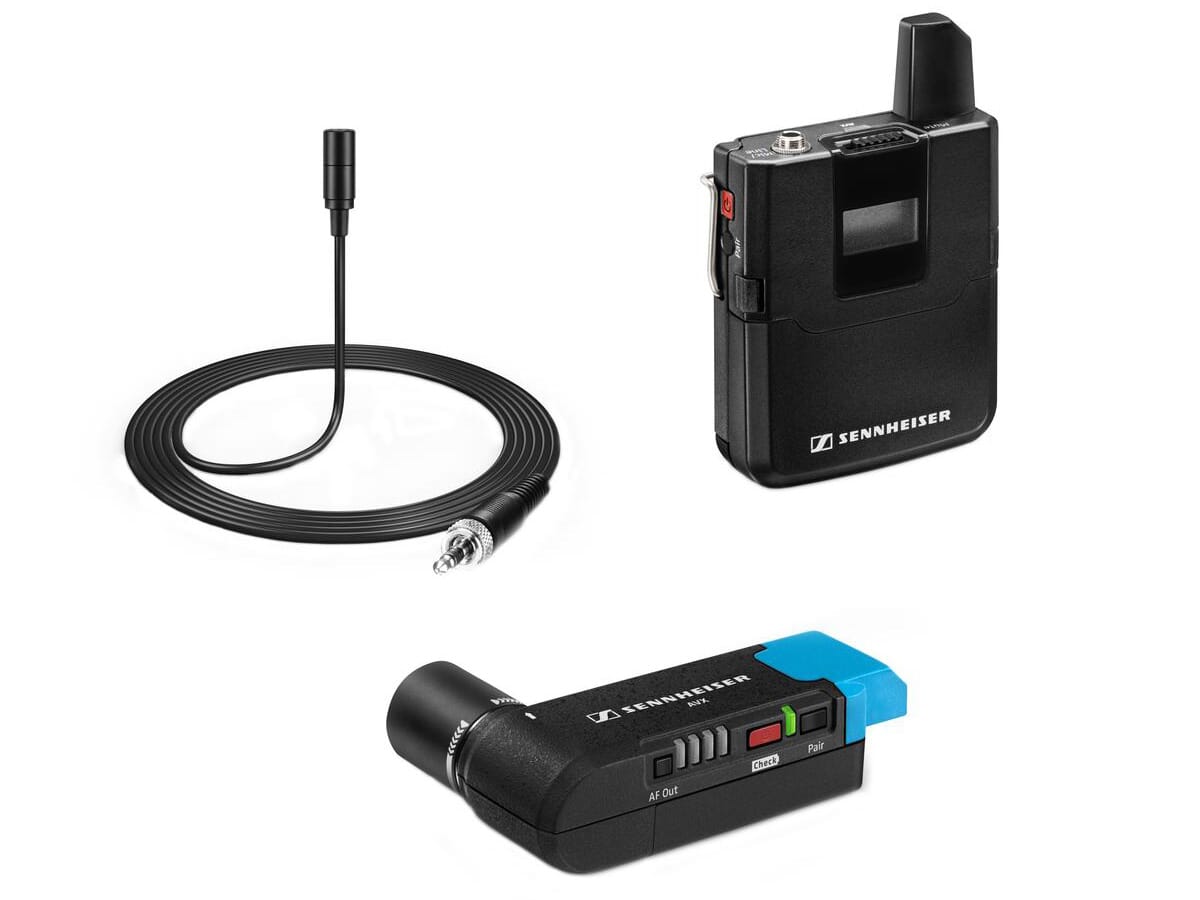

The AVX-MKE2 SET includes a bodypack transmitter with lavalier microphone,
the plug on receiver and all accessories to operate out of the box with
camcorders as well as DSLR cameras. It features self configuring digital
transmission which eliminates time-consuming radio frequency setup.
The ultra compact receiver rotates around the XLR connector to avoid
collision with other devices mounted on your camera. It switches on
and off automatically with your camera - saving battery power.
The AVX matches perfectly to your camera's input sensitivity without
having to adjust the audio level on the microphone.
From professional wedding video to documentaries, from street interviews
to corporate videos, the AVX just works allowing you to concentrate on creativity.
Very fast setup
Plugs directly into XLR audio input
Ultra compact receiver
Switches on/off by P48 Phantom power
Optimized dynamic range
Auto frequency management
AES 256 encryption
License free
Accessories included for DSLR use
Metal housing
Made in Germany
Hva er med i esken
Plug-on receiver
Energy pack
2x USB charging cable
Bodypack transmitter
MKE 2 lavalier microphone
Microphone clip
Hot shoe mount
Beltclip
XLR to mini jack cable
Pouch
Color black
Frekvensrespons 20 Hz - 20000 Hz
Total harmonisk forvrengning (THD) typ. 0.1 %
Vekt Receiver: 87 g (incl energy pack)
Audio input 3,5 mm mini jack
Lydutgang XLR
Operating temperature -10 °C - + 55°C
Signal-til -støy-forhold > 90 dB(A)
RF utgangeffekt adaptive up to 250mW (peak) country specific
Driftstid > 4h (Receiver), typ 15 h (Transmitter with LiIon energy pack)
Modulasjon GFSK (DECT)
Audio output level -30 dBu - 0 dBu in 4 Steps
Batterispesifikasjon Li-Ion 3,7 V DC
Dynamic range > 120 dB(A)
Frequency band 1880 - 1930 MHz (Country specific)
Sampling rates 24 bit / 48 kHz
Latency 19 ms
