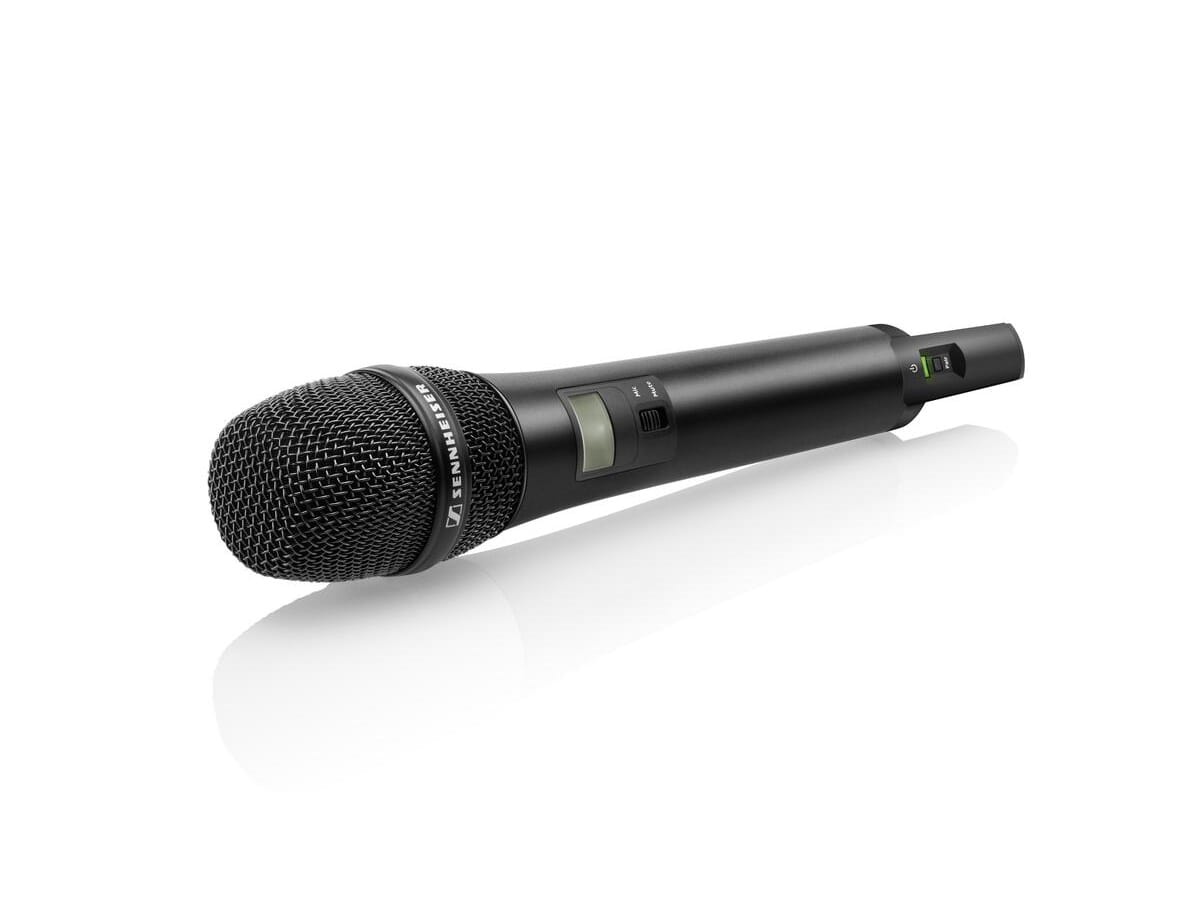

The SKM AVX-835 handheld transmitter for the AVX system is fully
self configuring which makes the setup of radio frequencies a thing
of the past. The AVX matches perfectely to your camera's input
sensitivity without having to adjust the audio level on the microphone.
The mute switch on the handheld transmitter gives you full controll during your interview.
Very fast setup
Plugs directely into XLR audio input
Ultra compact receiver
Switches on/off by P48 Phantom power
Optimized dynamic range
Auto frequency management
AES 256 encryption
License free
Mute switch
Metal housing
Made in Germany
Hva er med i esken
Handheld transmitter
Microphone capsule MMD 835
Microphone clamp
Energy pack
Color black
Frekvensrespons 20 Hz - 20000 Hz
Total harmonisk forvrengning (THD) typ. 0.1 %
Vekt Receiver: 87 g (incl energy pack)
Audio input 3,5 mm mini jack
Lydutgang XLR
Operating temperature -10 °C - + 55°C
Signal-til -støy-forhold > 90 dB(A)
RF utgangeffekt adaptive up to 250mW (peak) country specific
Driftstid > 4h (Receiver), typ 15 h (Transmitter with LiIon energy pack)
Modulasjon GFSK (DECT)
Audio output level -30 dBu - 0 dBu in 4 Steps
Batterispesifikasjon Li-Ion 3,7 V DC
Dynamic range > 120 dB(A)
Frequency band 1880 - 1930 MHz (Country specific)
Sampling rates 24 bit / 48 kHz
Latency 19 ms
