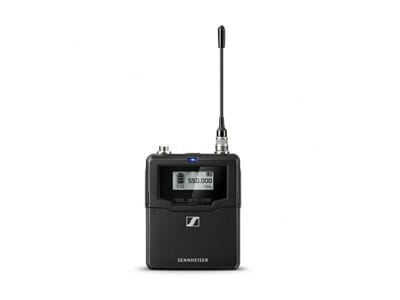

SK 6000 BK A5-A8
The pocket transmitter SK 6000 6000 is intermodulation-free,
which allows operation in an equidistant frequency grid.
The transmission concept thereby permits, even in the
toughest frequency ranges, maximum spectral efficiency.
In short: more channels, maximum transmission performance
at all times and hence outstanding signal stability.
The SK 6000 is the high-end solution for guitar/bass
or as a transmitter for the Sennheiser clip-on microphones
MKE 1, MKE 2 and MKE 40, headsets HSP 2, HSP 4 and SL Headmic.
The magnesium housing combines the benefits of being inconspicuous
in size, a robust design and low weight,
while offering reliable protection against moisture.
The lithium-ion battery pack BA 61 ensures up to 6.5 hours
of operation; there is also the option of operation with
batteries using the battery set B 61.
The transmitter is likewise compatible with the
EK 6042 and the EM 9046 in Long Range mode.
Technical Data:
Dimensions 76 x 62 x 20 mm (with BA 61 battery pack)
Weight Approx. 147 g (with BA 61 battery pack and belt clip)
Audio input 3-pin audio socket
Power consumption Max. 960 mW
RF output power 25 mW rms, 50 mW peak
Switching bandwidth 88 MHz
Operating time 6.5 h (with BA 61 battery pack)
Modulation Digital modulation long range mode
Gain Mic: adjustable in 3 dB steps from 0 dB to +42 dB
Line: adjustable in 3 dB steps from -6 dB to +9 dB
Frequency range 470 to 718 MHz, subdivided into 3 ranges:
SK 6000 A1 - A4: 470 - 558 MHz
SK 6000 A5 - A8: 550 - 638 MHz
SK 6000 B1 - B4: 630 - 718 MHz
Input impedance Mic: 22kO
Line: 1 MO
Audio codec SeDAC (Sennheiser Digital Audio Codec)
AF frequency response Line: 30 Hz - 20 kHz (3 dB)
Mic: 30 Hz - 20 kHz (3 dB)
Frequency stability < 5 ppm
Tunability 25 kHz steps
Lower cut-off-frequency Mic: adjustable, 30 Hz, 60 Hz, 80 Hz, 100 Hz, 120 Hz
Line: 30 Hz, 60 Hz, 80 Hz, 100 Hz, 120 Hz
Instrument cable emulation Adjustable cable length with 3 steps
Encryption AES 256 and Digital 9000 encryption
