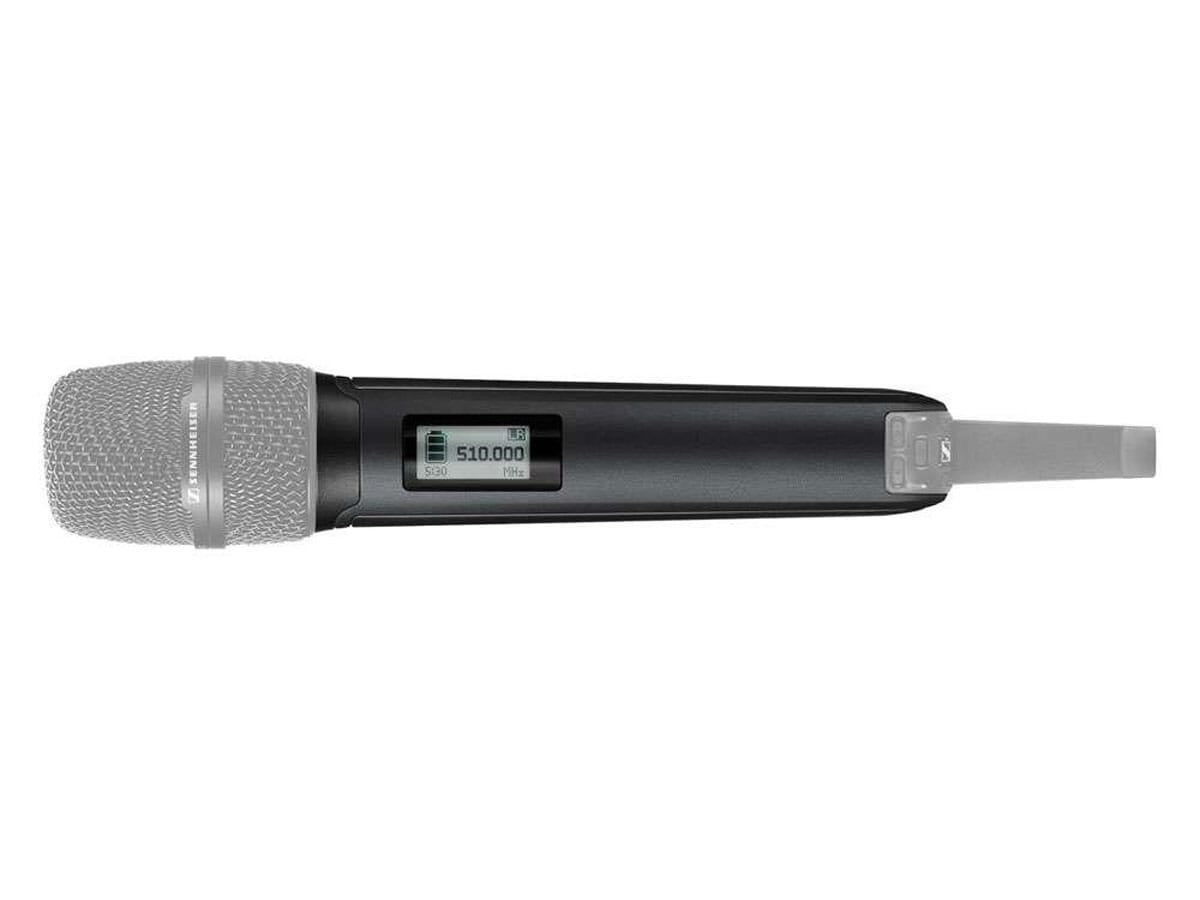

SKM 6000 A1-A4
The handheld transmitter SKM 6000 is intermodulation-free, which allows operation
in an equidistant frequency grid. The transmission concept thereby permits maximum
spectral efficiency even in the toughest frequency ranges. In short: more channels,
maximum transmission performance at all times and hence outstanding signal stability.
The SKM 6000 is compatible with Sennheiser and Neumann capsule heads and hence
perfectly prepared for any stage, voice and requirement
(evolution wireless, 2000, Digital 9000, Neumann KK 204 and KK 205).
The special magnesium housing offers the perfect balance between low weight and
live-compatible robustness.
The lithium-ion battery pack BA 60 ensures up to 5.5 hours of operation; there is
also the option of operation with batteries using the battery set B 60.
The transmitter is also compatible with the EK 6042 and the EM 9046 in Long Range mode.
Technical Data:
Dimensions 270 x 40 mm
Weight Approx. 350 g (with BA 60 battery pack and ME 9005 microphone module)
Power consumption Max. 960 mW
RF output power 25 mW rms, 50 mW peak
Switching bandwidth 88 MHz
Operating time 5.5 h (with BA 60 battery pack)
Frequency range 470 to 718 MHz, subdivided into 3 ranges:
SKM 6000 A1 - A4: 470 - 558 MHz
SKM 6000 A5 - A8: 550 - 638 MHz
SKM 6000 B1 - B4: 630 - 718 MHz
Audio codec SeDAC (Sennheiser Digital Audio Codec)
Frequency stability < 5 ppm
Tunability 25 kHz steps
Lower cut-off-frequency Adjustable: 60 Hz, 80 Hz, 100 Hz, 120 Hz
Encryption AES 256 and Digital 9000 encryption
Audio frequency response 30 Hz - 20 kHz (3 dB)
Audio Gain Can be set in 3 dB steps from 0 dB to +62 dB (for each capsule)
Modulation scheme Digital modulation long range mode
