Versatile wireless systems for those who sing, speak or play instruments with up to 42 MHz
tuning bandwidth in a stable UHF range and fast, simultaneous setup of up to 12 linked systems.

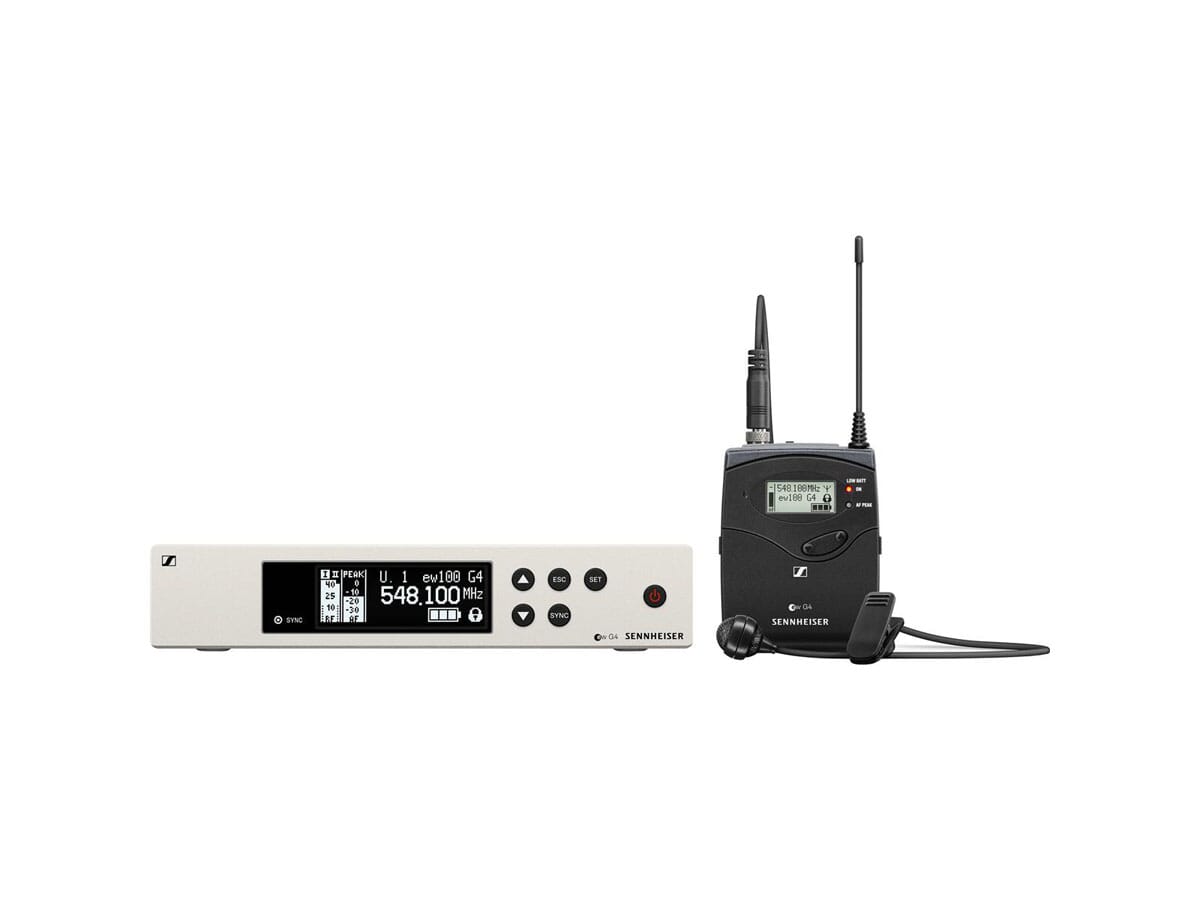

The perfect choice for moderators and presenters: Robust bodypack transmitter and unobtrousive clip-on
microphone ME 2-II (omni-directional) or ME 4 (cardioid) with high speech intelligibility for easy hands-free
operation on any stage.
Produsert for profesjonell, live lyd: Robust alt-i-ett-trådløst system for presentatører og moderatorer.
Robust bodypack-sender og diskré klemmemikrofon ME 2-II (omni-direksjonal) eller ME 4 (kardioid) med høy
taleforståelighet for daglig bruk på scenen

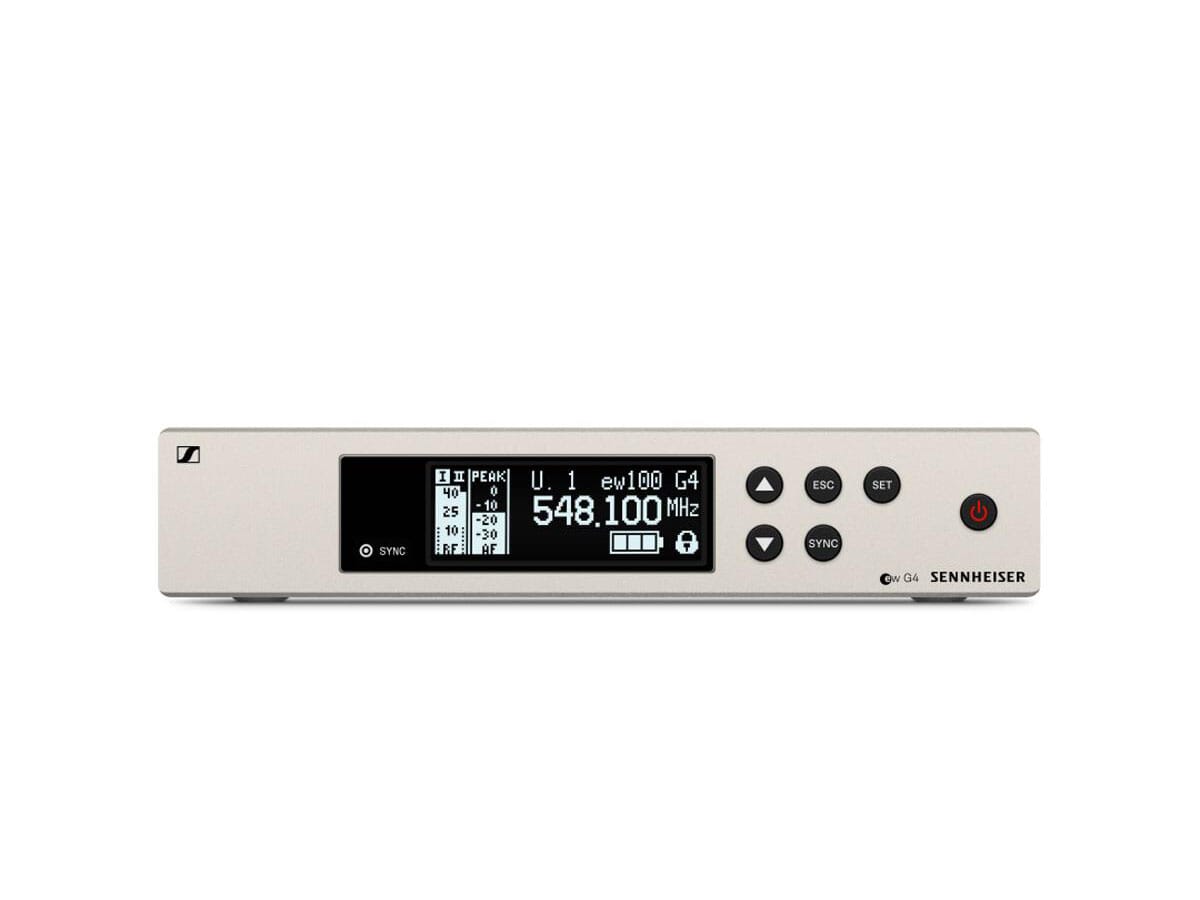

True diversity halv-stativ mottaker i en kapsel av hel-metall med intuitiv LCD display for full kontroll
Enkel og fleksibel trådløs synkronisering mellom sender og mottaker via infrarød
Rask frekvensallokering for inntil 12 mottakere via en ny lenkefunksjonalitet
Inntil 20 kompatible kanaler
Inntil 42 MHz båndvidde med 1680 valgbare frekvenser, kan tunes helt i et stabilt UHF område
Overføringsområde: Inntil 100 meter / 300 fot
Høy RF utgangeffekt (inntil 30 mW) avhengig av reguleringene i landet
Hva er med i esken
EM 100 G4 true diversity mottaker
SK 100 G4 bodypack sender
ME 2 klemmemikrofon (kun ew 100 G4-ME2 sett)
ME 4 klemmemikrofon (kun ew 100 G4-ME4 sett)
stativmontering sett
strømtilførsel
2 AA batterier
2 stavantenner
RJ 10 kabel
hurtigguide
sikkerhetsguide
produsenterklæringsblad
frekvens supplement ark
Dimensions Approx. 190 x 212 x 43 mm
Approx. 82 x 64 x 24 mm
Connector 3.5 mm jack
Compander Sennheiser HDX
Frequency response 50 to 18,000 Hz
Max. sound pressure level 120 dB
THD, total harmonic distortion = 0.9 %
Cable length approx. 1.60 m
Transducer principle pre-polarized condensor microphone
Weight Approx. 980 g
(incl. batteries) approx. 160 g
Audio output 6.3 mm jack socket (unbalanced): +12 dBu
XLR socket (balanced): +18 dBu
Pick-up pattern cardioid
Sensitivity in free field, no load (1kHz) 40 mV/Pa
Signal-to-noise ratio = 110 dBA
Equivalent noise level 31 dB
RF output power Max. 30 mW
Switching bandwidth up to 42 MHz
Peak deviation ±48 kHz
Nominal deviation ±24 kHz
Operating time Typically 8 h
Modulation Wideband FM
Power supply 12 V DC
2 AA batteries, 1.5 V or BA 2015 accupack
Antenna connector 2 BNC sockets
Current consumption 300 mA
at nominal voltage: typ. 180 mA
with transmitter switched off: = 25 µA
Adjacent channel rejection Typically = 65 dB
Input impedance 40 kO, unbalanced / 1 MO
Intermodulation attenuation Typically = 65 dB
Max. Input voltage 3 Veff
Powering 3 V battery / 2.4 V rechargeable battery
Receiving frequency Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks,
each with up to 12 factory-preset channels, no intermodulation 1 frequency
bank with up to 12 programmable channels
RF sensitivity < 2.5 µV for 52 dBA eff S/N
Squelch low: 5 dBµV middle: 15 dBµV high: 25 dBµV
Transmission frequency Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks,
each with up to 12 factory-preset channels, no intermodulation 1
frequency bank with up to 12 programmable channels
Equalizer Preset 1: Flat
Preset 2: Low Cut (-3 dB at 180 Hz)
Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
Preset 4: High Boost (+6 dB at 10 kHz)
AF frequency response Mic: 80 – 18,000 Hz, Line: 25 – 18,000 Hz
Temperature Range -10 °C to +55 °C
Receiver Principle True diversity
Frequency stability = ±15 ppm
Blocking = 70 dB
