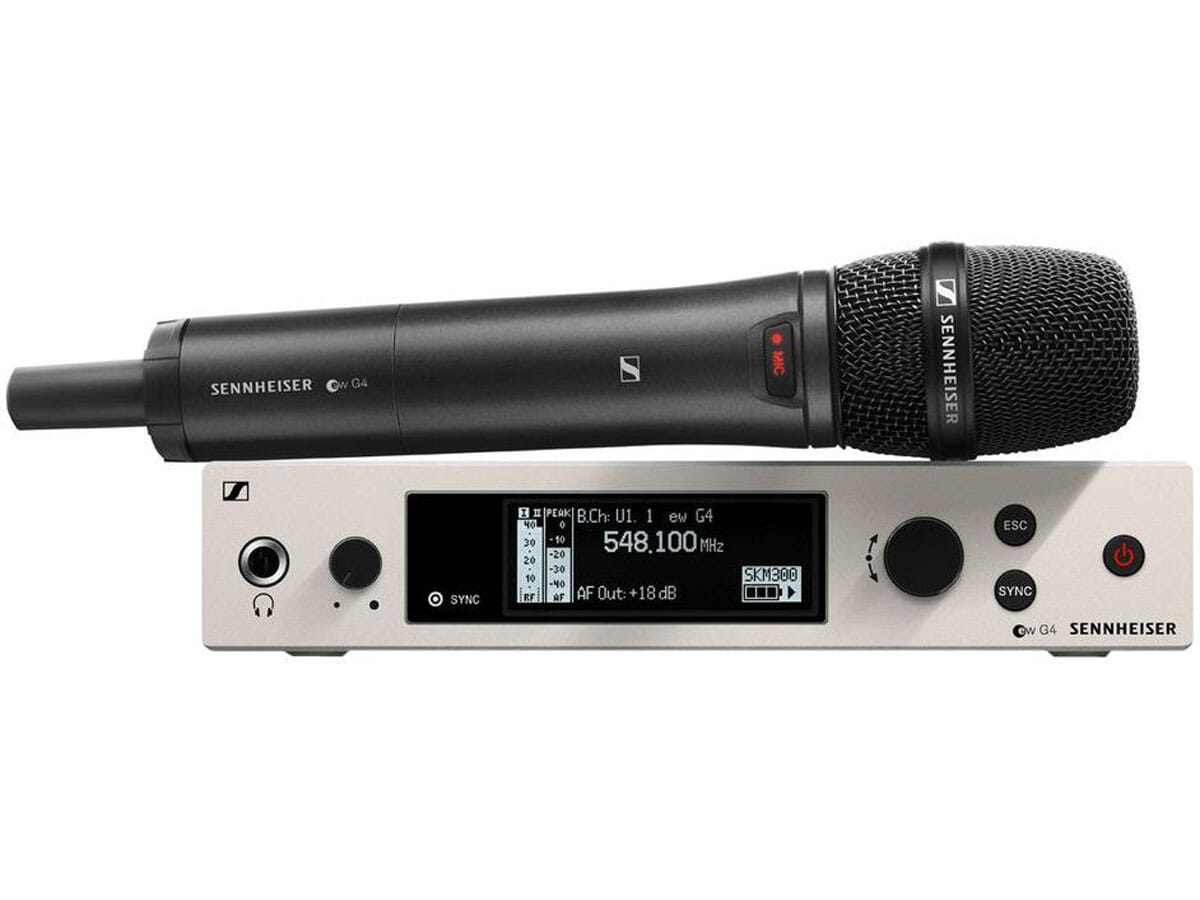

Best choice for your business, top of the class in education. The G4 300 Series
uses the power of an increased switching bandwidth of up to 88 MHz.
New frequency ranges allow to operate multi-channel setups with dozens of
channels while securing reliable operation - despite digital dividend.
Moderators and presenters love working with G4. The aluminum housing of the
handheld transmitter is not just robust but also lightweight for long speeches,
whereas the noiseless mute switch ensures full control.
Enkel å bruke, raskt oppsett
Integrert nettverk port tillater kontroll, overvåkning og oppsett via Sennheiser Control Cockpit og WSM programvare
En hel rekke produkter og eksisterende tilbehør (som mikrofoner) gjør at den kan brukes i alle slags miljøer
Opptil 88 MHz båndvidde, opptil 32 kanaler
Økt RF utgangeffekt (10/30/50 mW)
Overføringsområde: Inntil 100 meter / 330 fot
Kompatibel med trådløst høyttalersystem LSP 500 PRO
RC (fjernkontroll) bryter tilgjengelig for bodypack sender
Hva er med i esken
Enkel å bruke, raskt oppsett
Integrert nettverk port tillater kontroll, overvåkning og oppsett via Sennheiser Control Cockpit og WSM programvare
En hel rekke produkter og eksisterende tilbehør (som mikrofoner) gjør at den kan brukes i alle slags miljøer
Opptil 88 MHz båndvidde, opptil 32 kanaler
Økt RF utgangeffekt (10/30/50 mW)
Overføringsområde: Inntil 100 meter / 330 fot
Kompatibel med trådløst høyttalersystem LSP 500 PRO
RC (fjernkontroll) bryter tilgjengelig for bodypack sender
Dimensions Approx. 202 x 212 x 43 mm
Approx. Ø 50 x 265 mm
Compander Sennheiser HDX
THD, total harmonic distortion = 0.9 %
Weight Approx. 980 g
(incl. batteries) approx. 450 g

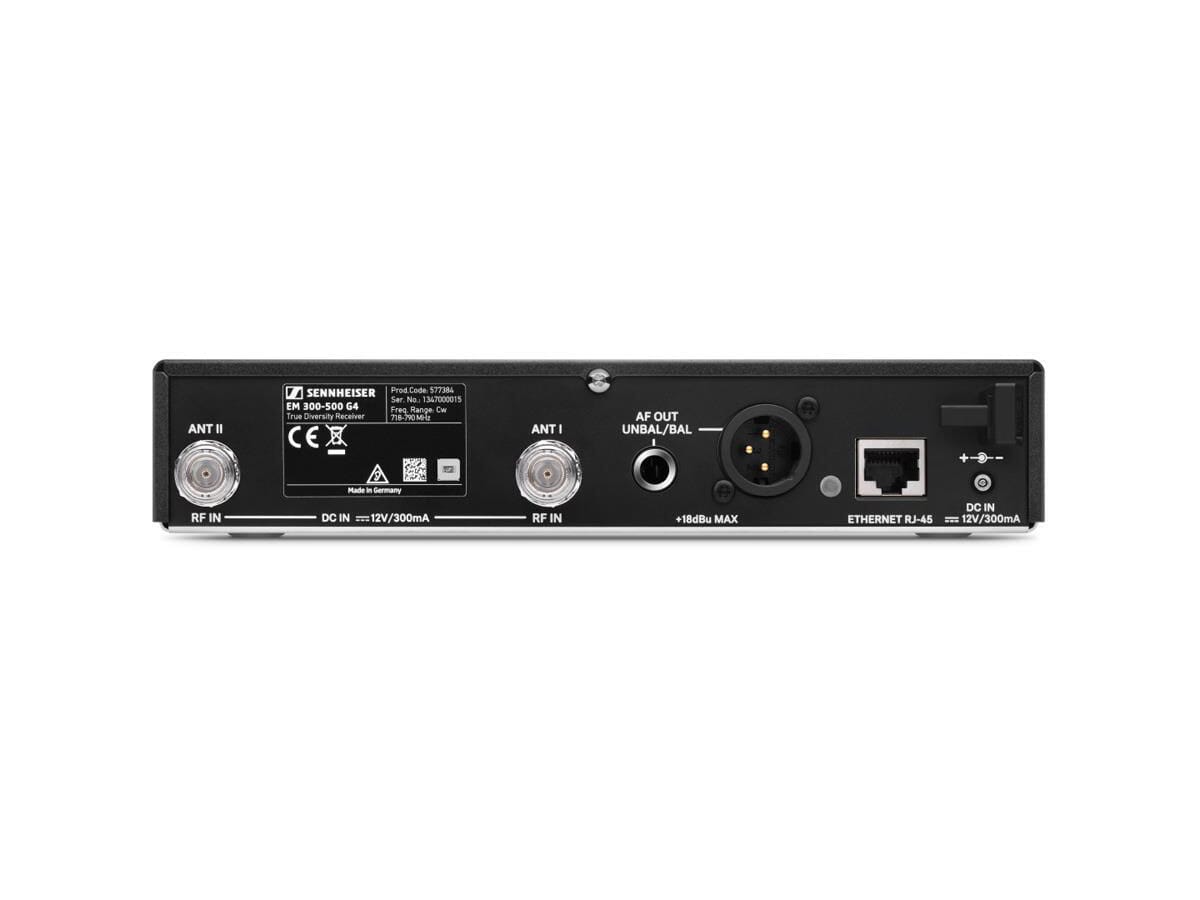

Audio output 6.3 mm jack socket (unbalanced): +12 dBu
XLR socket (balanced): +18 dBu
Signal-to-noise ratio = 115 dBA
RF output power switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
Switching bandwidth up to 88 MHz
Peak deviation ±48 kHz
Nominal deviation ±24 kHz
Operating time Typically 8 h
Modulation Wideband FM
Power supply 12 V DC
2 AA batteries, 1.5 V or BA 2015 accupack
Antenna connector 2 BNC sockets
Current consumption 350 mA
at nominal voltage: typ. 180 mA
with transmitter switched off: = 25 µA
Adjacent channel rejection Typically = 75 dB
Intermodulation attenuation Typically = 70 dB
Powering 3 V battery / 2.4 V rechargeable battery
Receiving frequency Max. 3520 receiving frequencies, adjustable in 25 kHz steps,
20 frequency banks, each with up to 32 factory-preset channels,
no intermodulation, 6 frequency banks with up to 32 programmable channels
RF sensitivity < 2.5 µV for 52 dBA eff S/N
Squelch 5 to 25 dBµV in steps of 2 dB
Transmission frequency Max. 3520 transmission frequencies, adjustable in 25 kHz steps,
20 frequency banks, each with up to 32 factory-preset channels,
no intermodulation, 6 frequency banks with up to 32 programmable channels
Equalizer Preset 1: Flat
Preset 2: Low Cut (-3 dB at 180 Hz)
Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
Preset 4: High Boost (+6 dB at 10 kHz)
AF frequency response 80 – 18,000 Hz
Temperature Range -10 °C to +55 °C
Receiver Principle True diversity
Frequency stability = ±15 ppm
Blocking = 75 dB
