Best choice for your business, top of the class in education. The G4 300 Series uses
the power of an increased switching bandwidth of up to 88 MHz. New frequency ranges
allow to operate multi-channel setups with dozens of channels while securing
reliable operation - despite digital dividend.
The powerful clip-on mic package. Easy to operate, reliable while transmitting – G4 does the job.
The 300 series lavalier mic set ensures hands-free operation even during the longest
congress or lecture. Remote mute switch available for the bodypack transmitter.
Enkel å bruke, raskt oppsett
Integrert nettverk port tillater kontroll, overvåkning og oppsett via Sennheiser Control Cockpit og WSM programvare
En hel rekke produkter og eksisterende tilbehør (som mikrofoner) gjør at den kan brukes i alle slags miljøer
Opptil 88 MHz båndvidde, opptil 32 kanaler
Økt RF utgangeffekt (10/30/50 mW)
Overføringsområde: Inntil 100 meter / 330 fot
Kompatibel med trådløst høyttalersystem LSP 500 PRO
RC (fjernkontroll) bryter tilgjengelig for bodypack sender

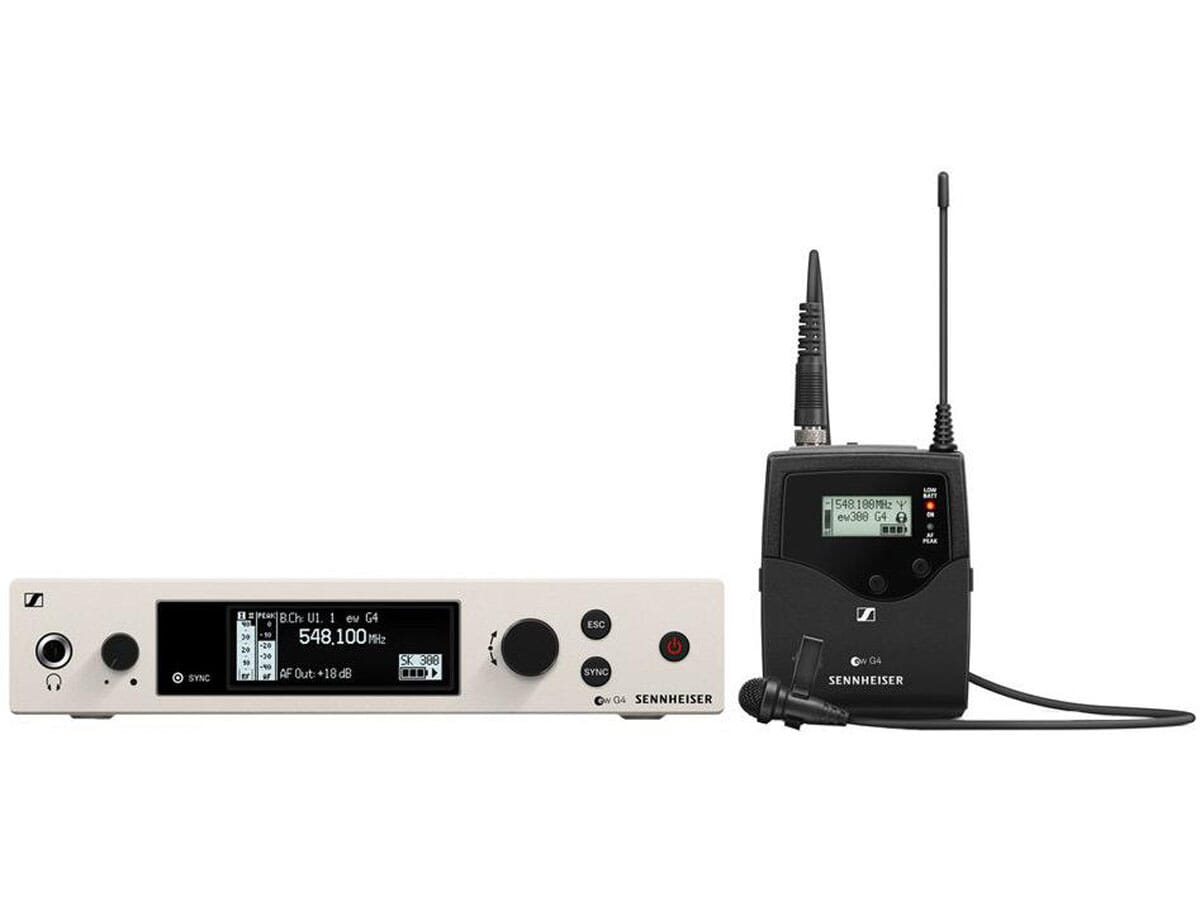

Hva er med i esken
EM 300-500 G4 true diversity mottaker
SK 300 G4 bodypack sender
ME 2 klemmemikrofon
GA 3 stativmontering sett
strømtilførsel
2 AA batterier
2 stavantenner
hurtigguide
sikkerhetsguide
produsenterklæringsblad
Dimensions Approx. 202 x 212 x 43 mm
Approx. 82 x 64 x 24 mm
Connector 3.5 mm jack
Compander Sennheiser HDX
Frequency response 50 to 18,000 Hz (ME 2-II)
Max. sound pressure level 130 dB
THD, total harmonic distortion = 0.9 %
Cable length approx. 1.60 m
Transducer principle pre-polarized condensor microphone
Weight Approx. 980 g
(incl. batteries) approx. 160 g
Audio output 6.3 mm jack socket (unbalanced): +12 dBu
XLR socket (balanced): +18 dBu
Pick-up pattern omni-directional
Sensitivity in free field, no load (1kHz) 20 mV/Pa
Signal-to-noise ratio = 115 dBA
Equivalent noise level 36 dB
RF output power switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
Switching bandwidth up to 88 MHz
Peak deviation ±48 kHz
Nominal deviation ±24 kHz
Operating time Typically 8 h
Modulation Wideband FM
Power supply 12 V DC
2 AA batteries, 1.5 V or BA 2015 accupack
Antenna connector 2 BNC sockets
Current consumption 350 mA
at nominal voltage: typ. 180 mA
with transmitter switched off: = 25 µA
Adjacent channel rejection Typically = 75 dB
Input impedance 40 kO, unbalanced / 1 MO
Intermodulation attenuation Typically = 70 dB
Max. Input voltage 3 Veff
Powering 3 V battery / 2.4 V rechargeable battery
Receiving frequency Max. 3520 receiving frequencies, adjustable in 25 kHz steps,
20 frequency banks, each with up to 32 factory-preset channels,
no intermodulation, 6 frequency banks with up to 32 programmable channels
RF sensitivity < 2.5 µV for 52 dBA eff S/N
Squelch 5 to 25 dBµV in steps of 2 dB
Transmission frequency Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks,
each with up to 32 factory-preset channels, no intermodulation,
6 frequency banks with up to 32 programmable channels
Equalizer Preset 1: Flat
Preset 2: Low Cut (-3 dB at 180 Hz)
Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
Preset 4: High Boost (+6 dB at 10 kHz)
AF frequency response Mic: 80 – 18,000 Hz, Line: 25 – 18,000 Hz
Temperature Range -10 °C to +55 °C
Receiver Principle True diversity
Frequency stability = ±15 ppm
