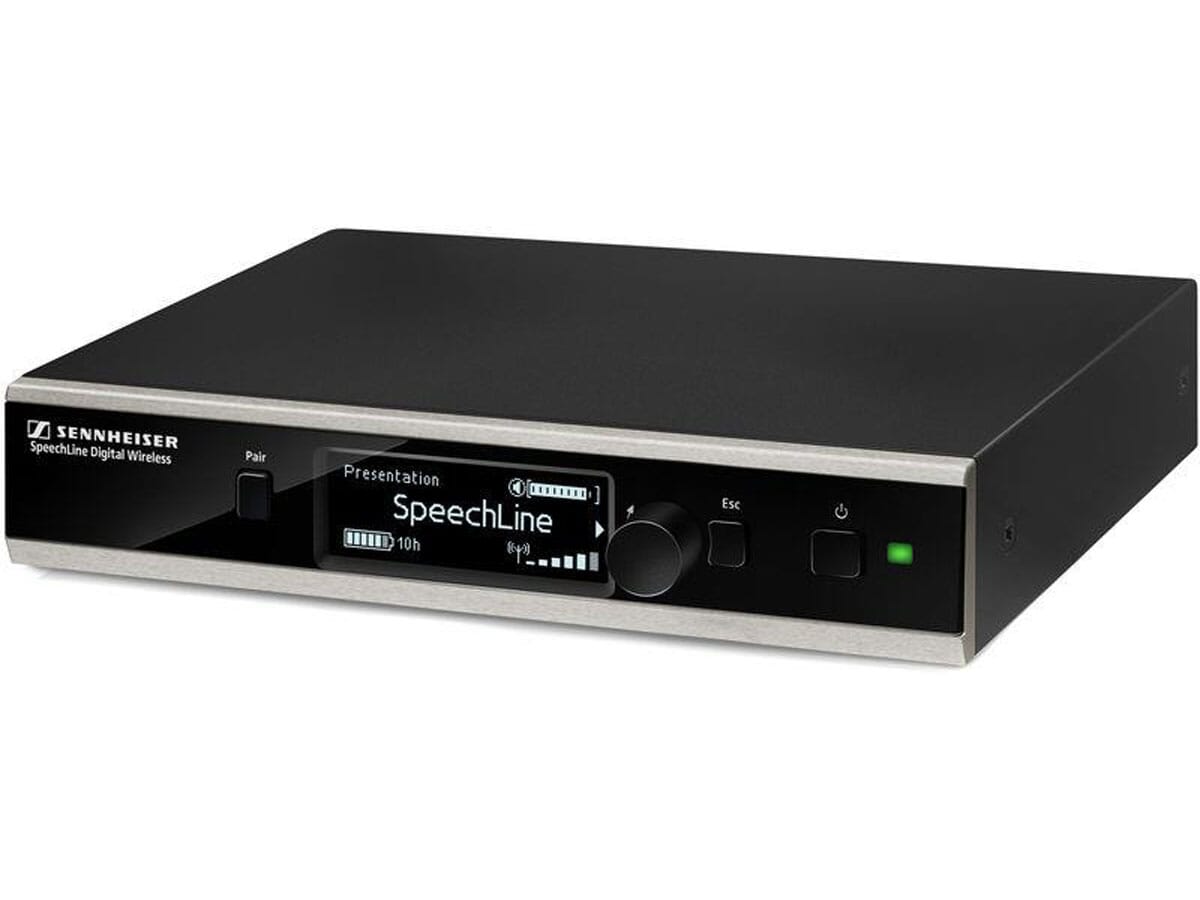

The half 19" stationary SL Rack Receiver DW is the easy-to-integrate core of the
SpeechLine Digital Wireless System. It features a clear visible OLED display for
easy setup and operation. Thanks to the bi-directional communication all settings of
the mobile transmitters can be adjusted from the receiver side. The automatic frequency and
interference management allows convenient and reliable operation.
Thanks to the easy-to-handle pairing process, the transmitter and receiver
are securely linked. Via network integration all settings and statuses are also accessible
via AMX/Crestron media control protocol and the dedicated Sennheiser
iOS Apps. The antennas can be either back or front-mounted.
Furthermore, extension cables for wall mounting are available.
Automatic frequency and interference management
Speech optimized automatics and sound profiles
Clear and easy focused user interface with OLED display
Ethernet connectivity (IPv4 and IPv6)
Media control protocol integration
Secure 256 bit AES encryption
Remote controllable
Quick setup pairing process
Hva er med i esken
SL Reveiver DW - Rack Receiver
Power Supply
Antennas
Frequency response 20 to 20,000 Hz
THD, total harmonic distortion typ. 0.1 %
Weight approx. 828 g
Power consumption 350 mA
Signal-to-noise ratio > 90 dB(A)
RF output power adaptive, up to 250 mW (country-specific)
Power supply 12 V DC
Antenna connector 2 x reverse SMA
Audio output level (balanced) max. +18 dBu, typ. -24 dBu
Audio output level (unbalanced) max. +6 dBu
Dynamic range > 120 dB(A)
RF sensitivity < -90 dBm
Sampling rates 24 bit/48 kHz
Connection Audio Out: XLR 3M Audio Out: 2 x RCA Network: RJ 45
