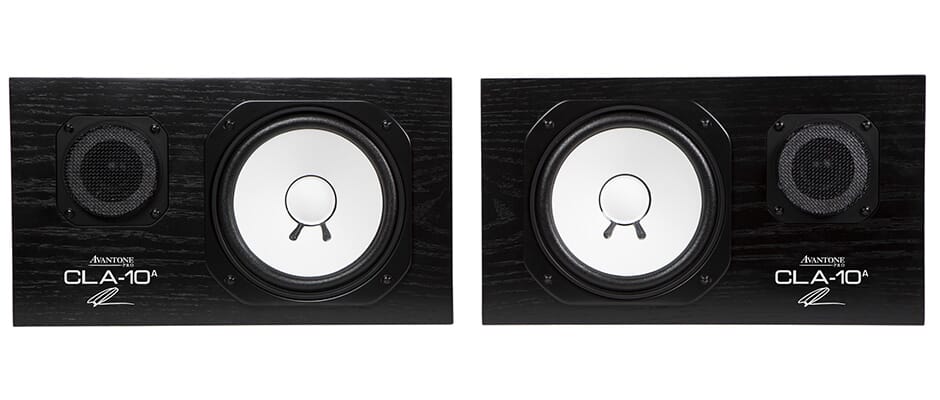

Active Nearfield Monitors
Developed in collaboration with Chris Lord Alge
2-Way speaker: 18 cm woofer and 3.5 cm tweeter
Frequency range: 60 - 20,000 Hz
104 DB SPL
200 W Class AB amplifier
18 mm MDF case with real wood veneer
Connectors: XLR / 6.3 mm jack combo balanced, RCA unbalanced
Dimensions (W x H x D): 381.5 x 215 x 197.5 mm
Weight: 8.2 kg (per monitor)
Price for pair
Specifications
SYSTEM TYPE: Active Full-Range Two-Way Stereo Pair
SYSTEM FREQUENCY RESPONSE: 60Hz-20,000Hz (Accessible Musical Range)
COMPONENTS: Low Frequency: AV10-MLF 18Cm Cone, High Frequency: AV10-MHF 3.5Cm Soft Dome
CABINET: 10.4 Liter Sealed Design, 18mm MDF With Real Wood Veneer
CABINET DIMENSIONS: 381.5mm X 215mm X197.5mm (15”X 8 ½”X 7- ¾ ”)
WEIGHT: 8.2Kg / 18 Lbs (Each)
SHIPPING WEIGHT: 18.5 Kg / 40.5 Lbs
SPL: 104dB
PEAK MUSICAL OUTPUT: 110dB (Music Program Material)
AMPLIFIER: 200W Class Ab Linear Supply
THD: 0.05% At 1Khz, 1W

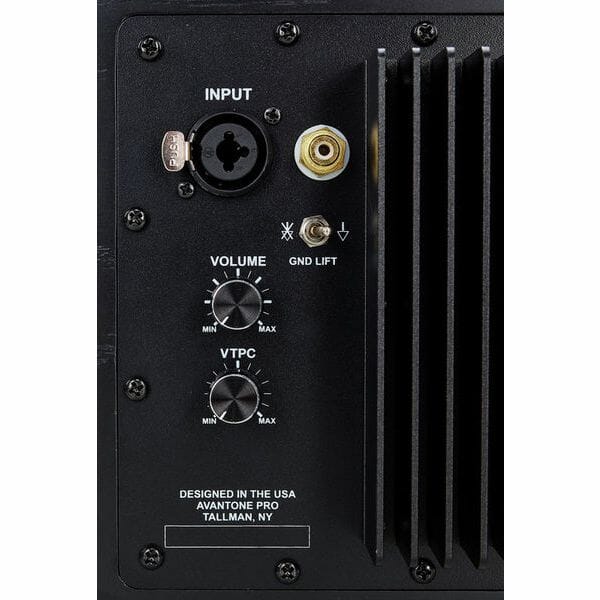

BALANCED INPUTS: Combination XLR & Phone Jack
UNBALANCED INPUT: RCA Phono Jack
VOLUME: +0dB, -120dB
VTPC: Variable Tissue Paper Control Fc 1.8Khz +6dB, -20dB.
POWER: On/off Switch
GROUND LIFT SWITCH
POWER: 115Vac/230Vac Selectable
POWER CONSUMPTION:
STANDBY: 3W
FULL OUTPUT: 250W
