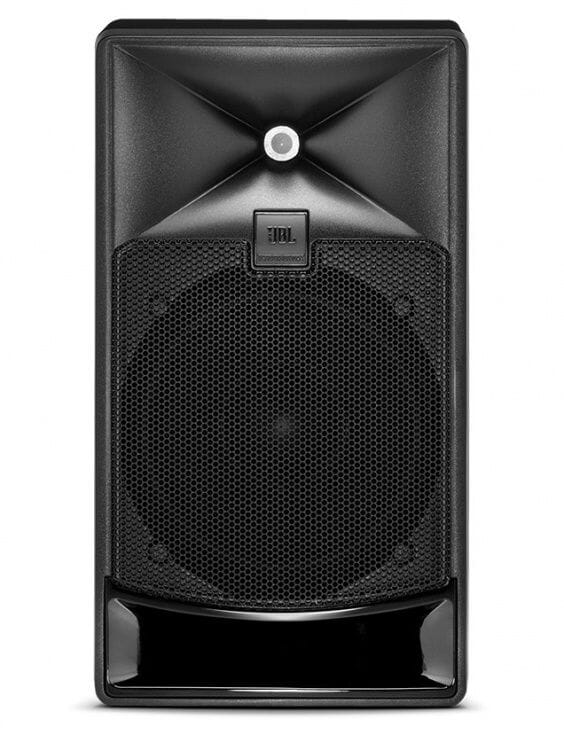

High end 5 passiv studiomonitor, med flere elementer hentet fra flaggskipet JBL M2.
Frequency Response -1.5 dB @ 48Hz – 23kHz
Frequency Range 39Hz – 36 kHz
Max SPL (80 Hz - 20 kHz) > ,101 dB SPL / 1m
Maximum Peak SPL (80 Hz - 20 kHz) > ,107 dB SPL / 1m
HF Driver 2409H

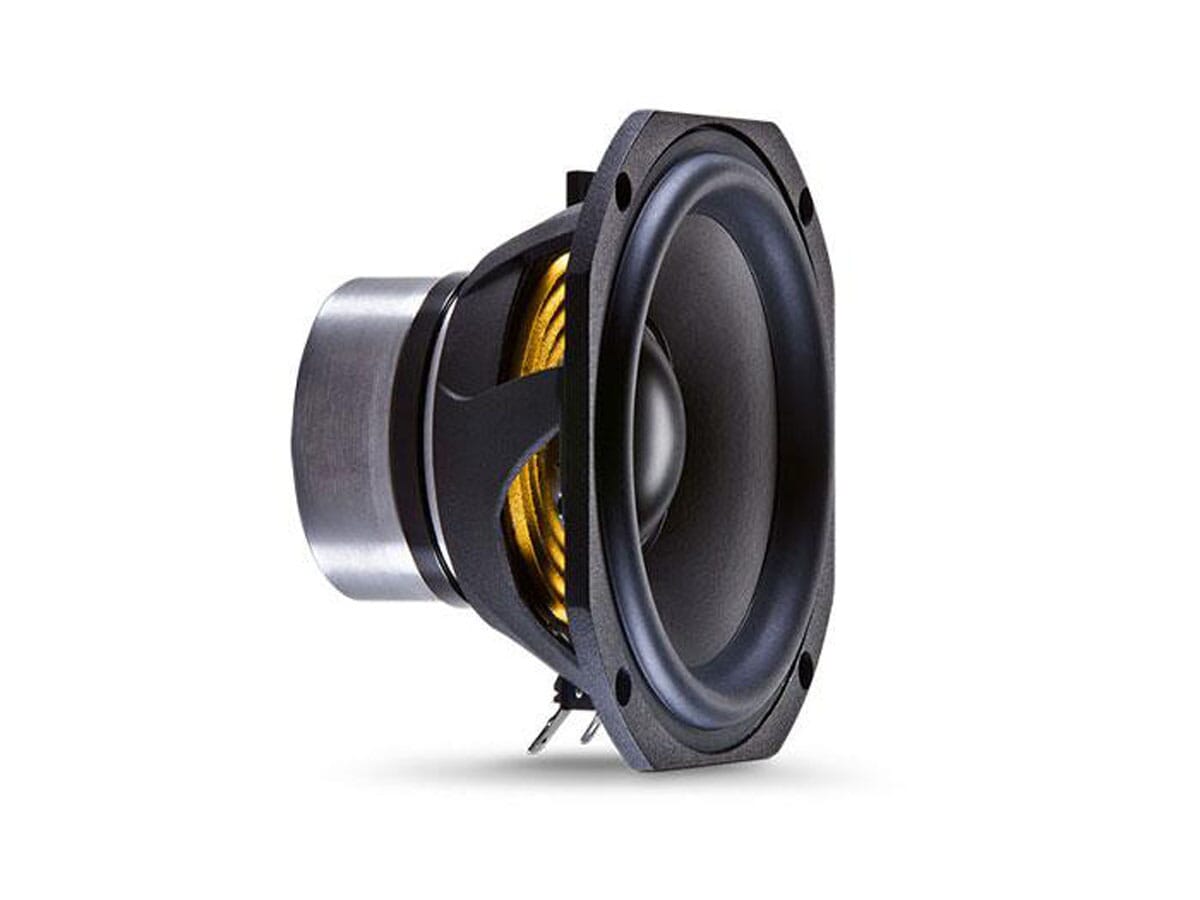

LF Driver 725G
Dividing Network
Transition Frequency 1.9 kHz
Input Types Phoenix Terminals accept 12 gauge speaker wire
Dimensions (HxWxD) 10.5 x 5.875 x 8.125 in (267 x 149 x 206 mm)
Weight Each 9.0 lb (4.08 kg)
Enclosure Birch plywood reinforced for mounting
Mounting Top, bottom and rear mounting points. 2-hole mounting pattern
