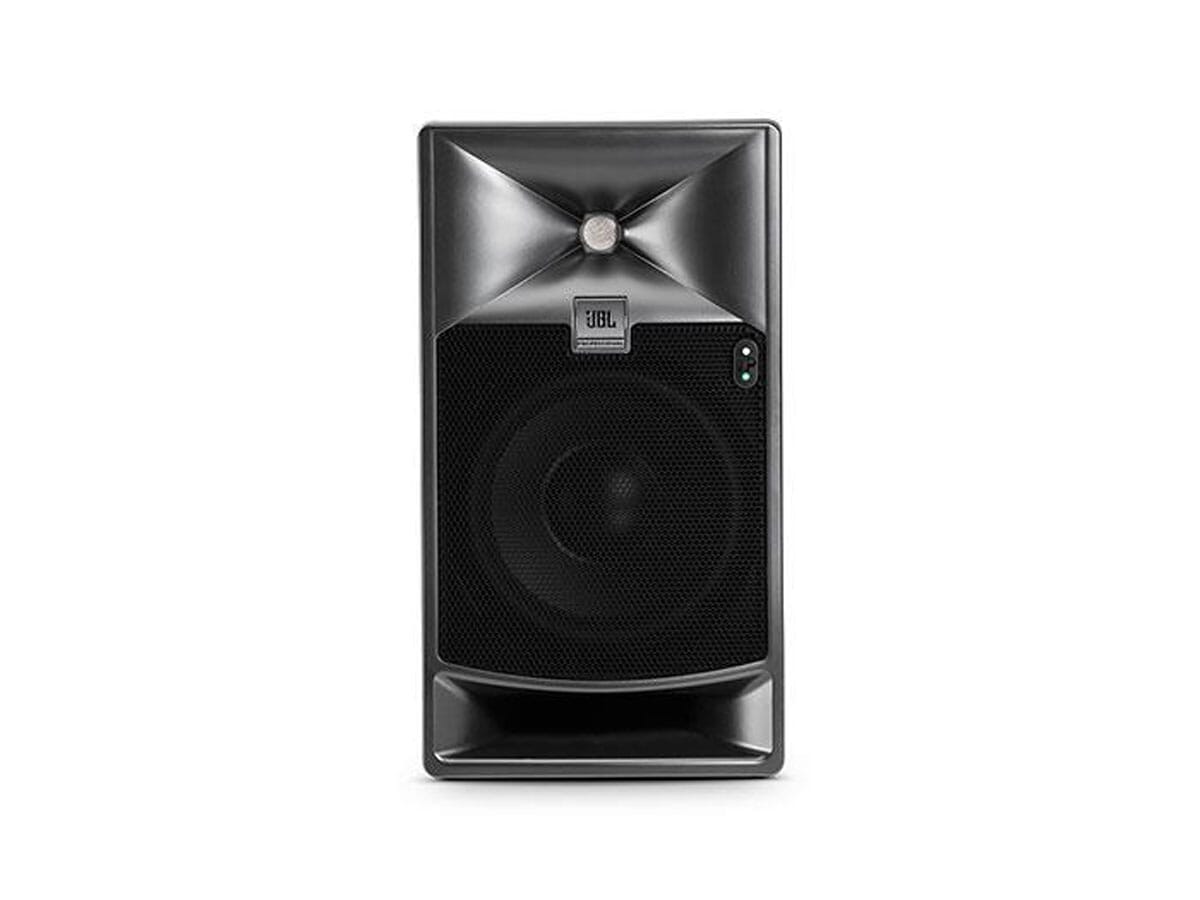

The JBL 705P is the self-powered reference monitor for critical music recording, film post and broadcast production applications. The JBL 705P leverages the same patent-pending driver technologies and JBL’s renowned Image Control Waveguide found in the 708P and the flagship M2, but with a smaller footprint. Despite its compact size, JBL 705P delivers an eye-opening level of output, well beyond that of existing, comparably-sized studio monitors, for greater dynamic range and greater working distances. The speakers deliver an expansive soundstage and pristine accuracy in a broad range of rooms.
Frequency Response -1.5 dB @ 48Hz – 23kHz
Frequency Range 39Hz – 36 kHz
Max SPL (80 Hz - 20 kHz) > ,101 dB SPL / 1m
Maximum Peak SPL (80 Hz - 20 kHz) > ,107 dB SPL / 1m
HF Driver 2409H

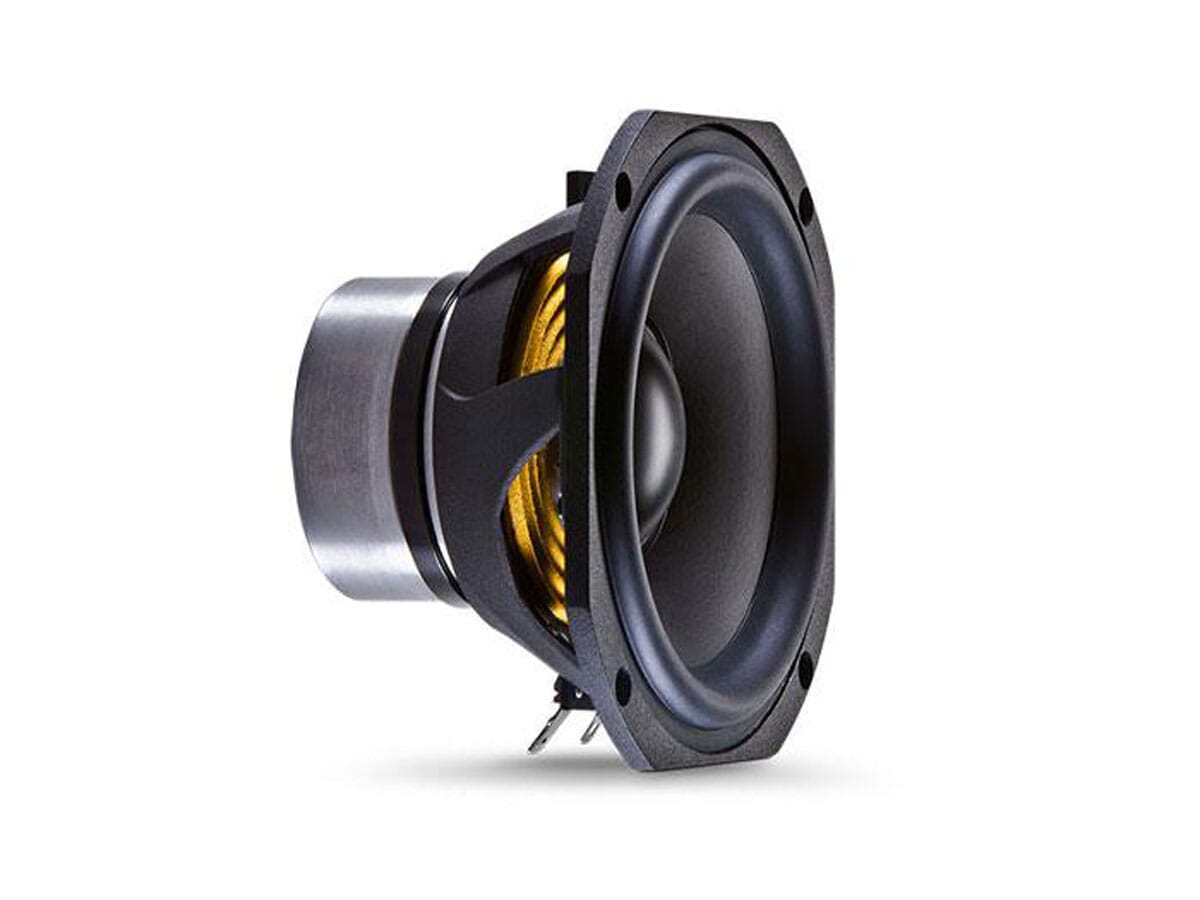

LF Driver 725G
Dividing Network
Transition Frequency 1.9 kHz
Input Types 1 x XLR-1/4" balanced combination analog audio input
1 x XLR AES3 format digital input with 1 x XLR pass-through output
Digital input will accept sample rates up to 192 kHz
Dimensions (HxWxD) 10.5 x 5.875 x 8.125 in (267 x 149 x 206 mm)
Weight Each 9.0 lb (4.08 kg)
Enclosure Birch plywood reinforced for mounting
Mounting Top, bottom and rear mounting points. 2-hole mounting pattern
