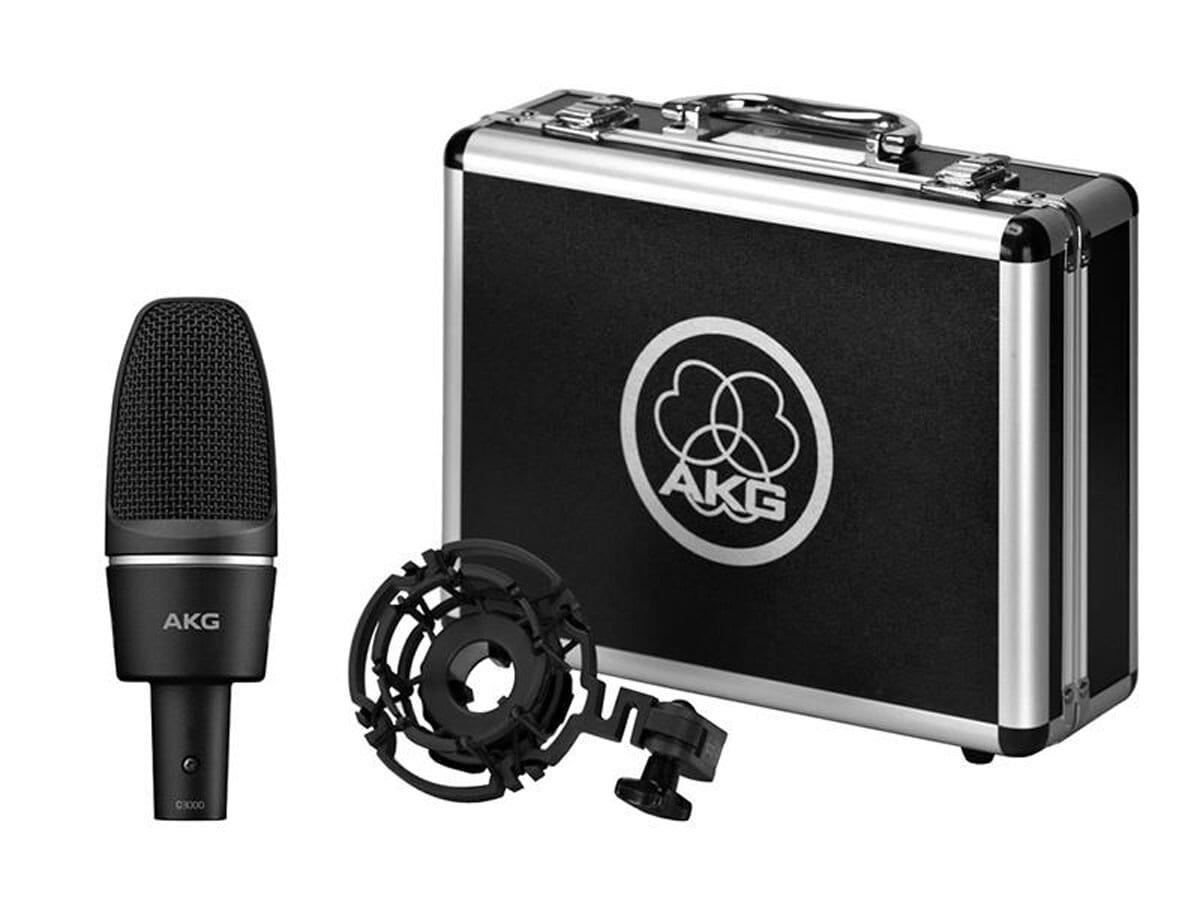

Leveres med dempet strikkoppheng (H85).
Spesifikasjoner:
Type: 1-inch large-diaphragm pressure gradient microphone
Polar pattern: cardioid
Frequency range: 20 to 20,000 Hz
Sensitivity: 20 mV/Pa (-32 dBV)
Max. SPL: 200 / 630 Pa, 140 / 150 dB SPL for 0.5% THD (0/-10 dB)
Equivalent noise level: ,14 dB-A ,(IEC 60268-4, A-weighted) ,
Signal/noise ratio ,(A-weighted): 80 dB

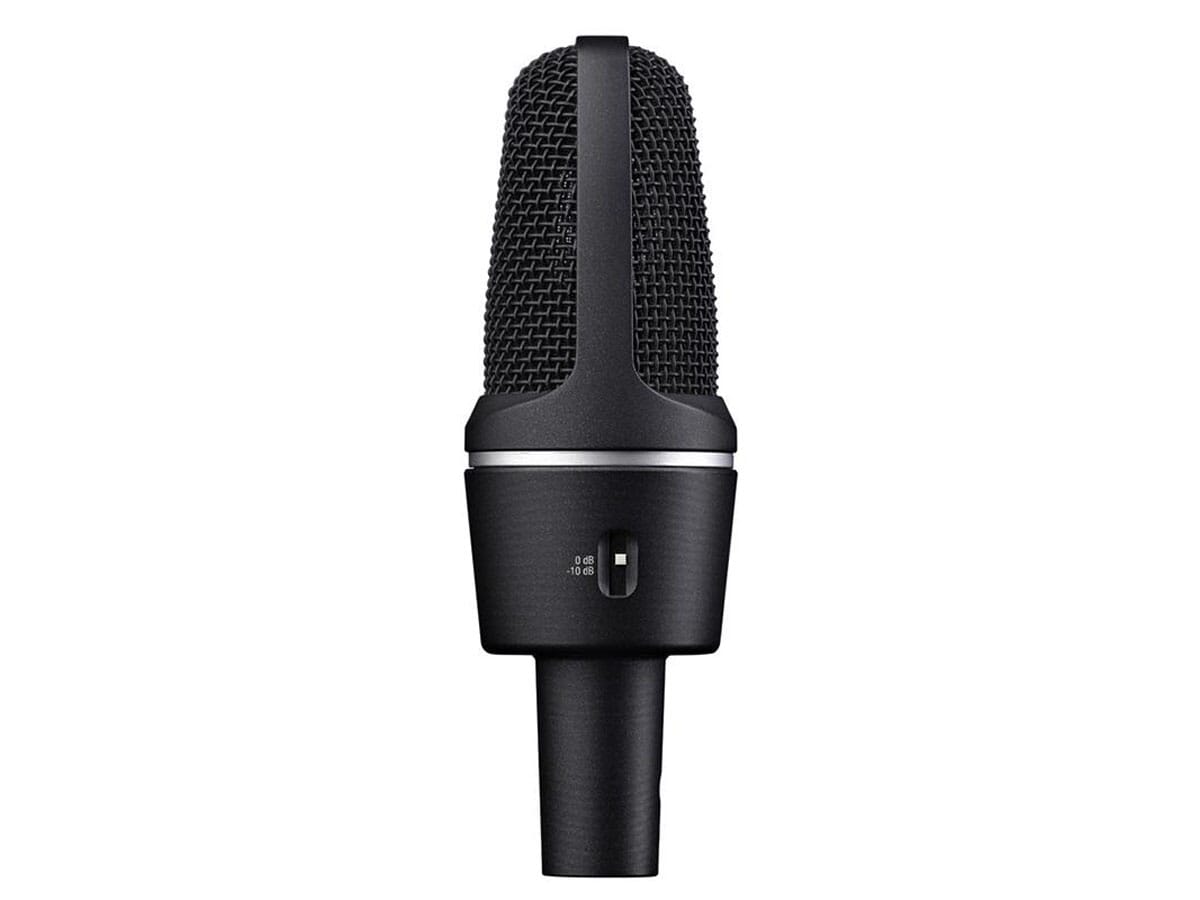

Preattenuation pad: -10 dB, switchable
Bass cut filter slope: 6 dB/octave below 500Hz
Impedance: < ,=200 ohms
Recommended load impedance: ,> ,=1000 ohms
Dynamic range: 126 dB (A-weighted)
Environment: ,temperature: -10°C to +60°C (14°F to 140°F), relative humidity: 90% (+20°C/68°F), 85% (+60°C/140°F)
Power requirement: 9 to 52 V phantom power to IEC 61
Current consumption: < ,=2 mA
Connector: 3-pin male XLR to IEC standard
Dimensions: max. dia.: 53 mm, length: 162 mm
Net weight: 320 g
